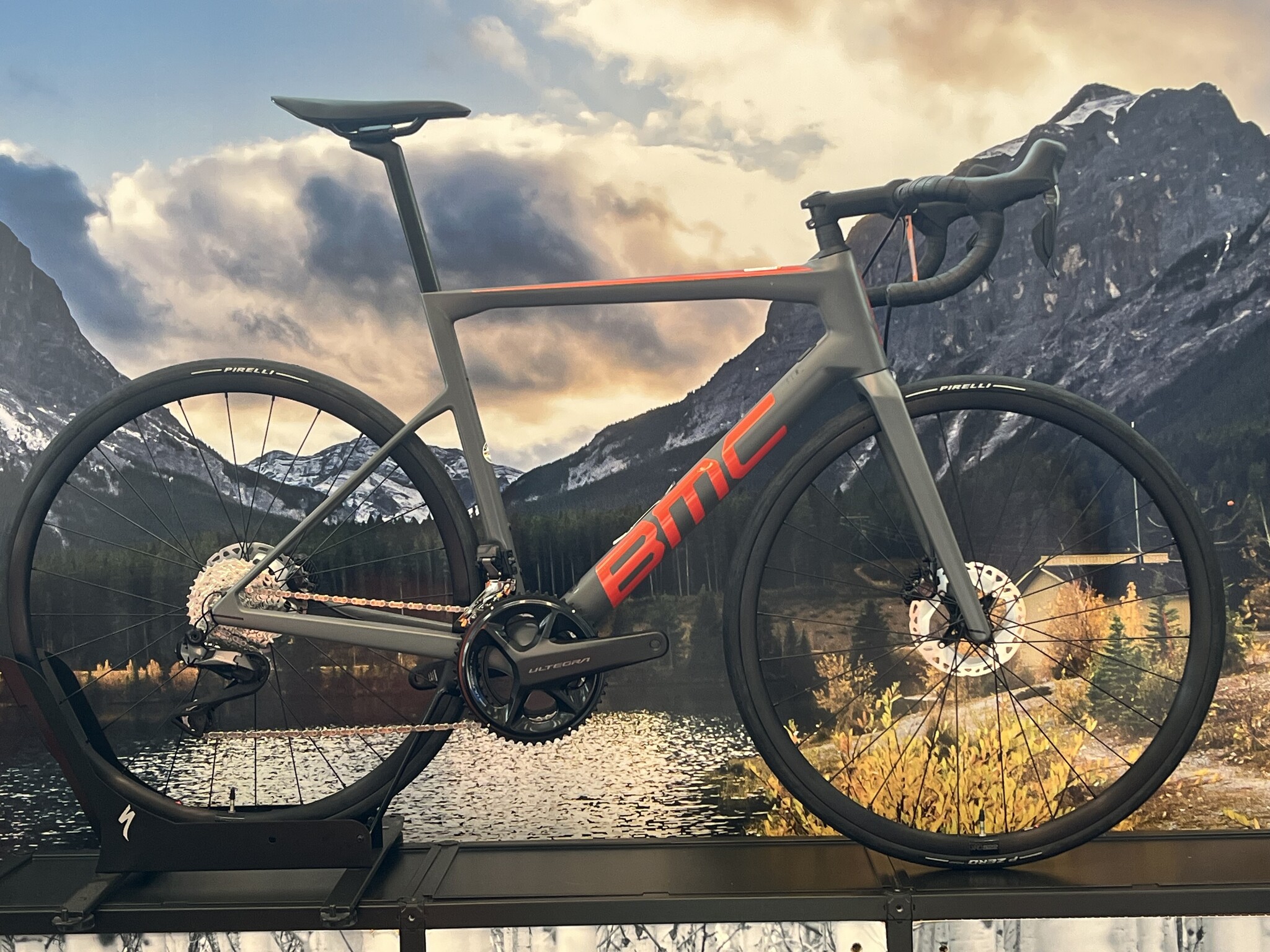

Forged on the slopes of the Swiss Alps. Hardened over the cobbles of Spring Classics. Perfected within the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies the Teammachine R isn’t just another race bike. With the Teammachine R 01 FOUR finished off with the Shimano Ultegra Di2 drivetrain including powermeter, CRD-501 Carbon Wheelset and BMC’s ICS2 Integrated Cockpit Design.
SPECS
Frame
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Handlebar
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare
Seatpost
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
Saddle
Selle Italia SLR Boost Superflow | TI316 Rail | 145mm
Crankset
SHIMANO Ultegra (FC-R8100)
Chainrings
52-36T
Power Meter
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette
SHIMANO Ultegra (CS-R8101)
Cassette Size
11-30T
Chain
SHIMANO CN-M8100
Front Derailleur
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur
SHIMANO Ultegra Di2 (RD-R8150)
Shifters
SHIMANO Ultegra Di2 (ST-R8170)
Gears
2 x 12
Bottom Bracket
SHIMANO Press Fit SM-BB72
Brake Levers / Calipers
SHIMANO Ultegra (BR-R8170)
Rotors
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R)
160 / 160mm
Rims
CR 50 SL Carbon | Tubeless Ready | 50mm
Hubs (F/R)
TXC-812 & TXC-240 Centerlock
Tires
Pirelli P Zero Race TLR | 26mm
Tubeless Information
Tubeless Rim | Tubeless Tires
Tire Clearance
30mm
Weight without Pedals
7.2kg | Size 54 with all accessories
ASTM Classification
Level 1
System Weight Limit
110kg
