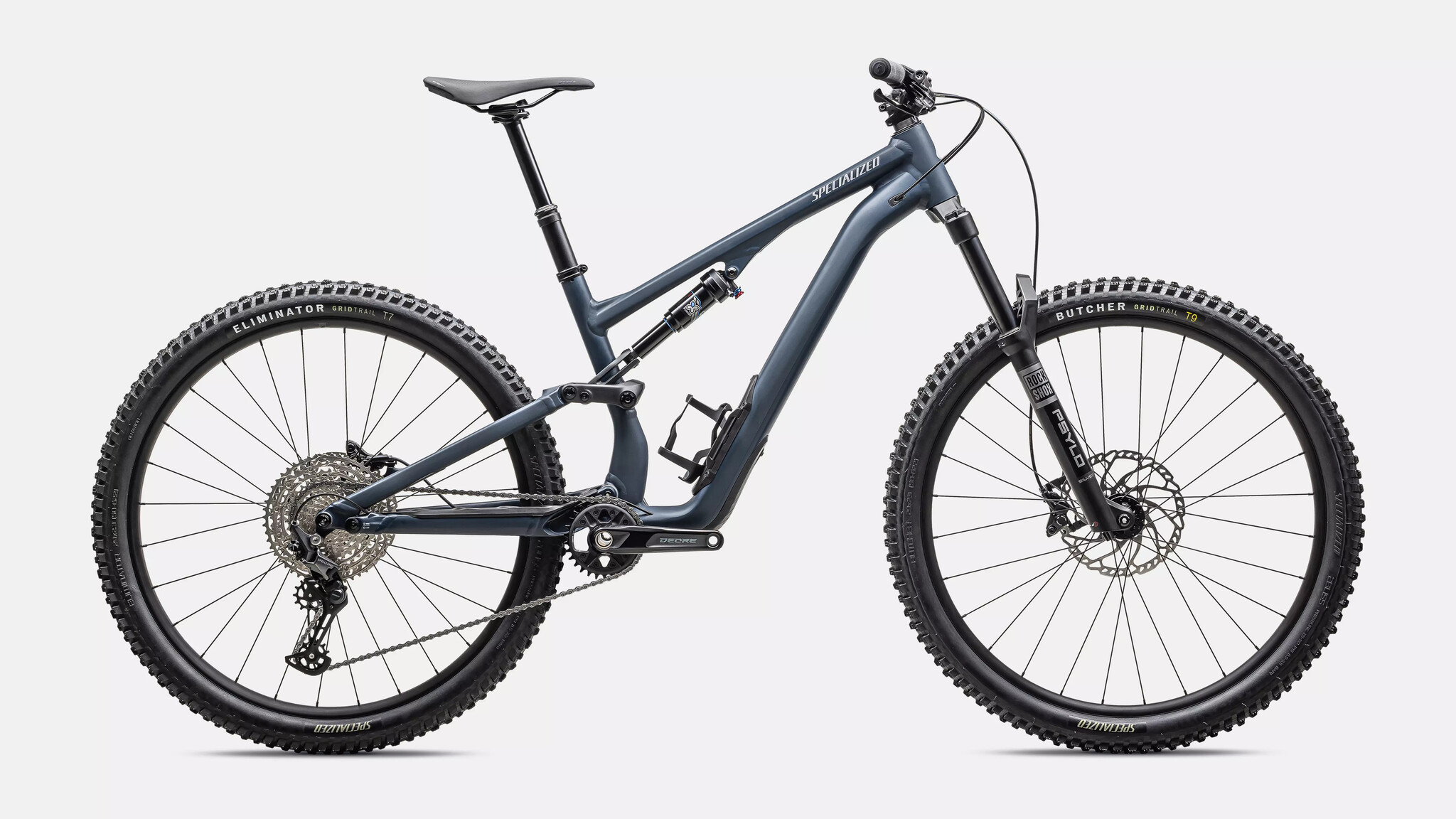

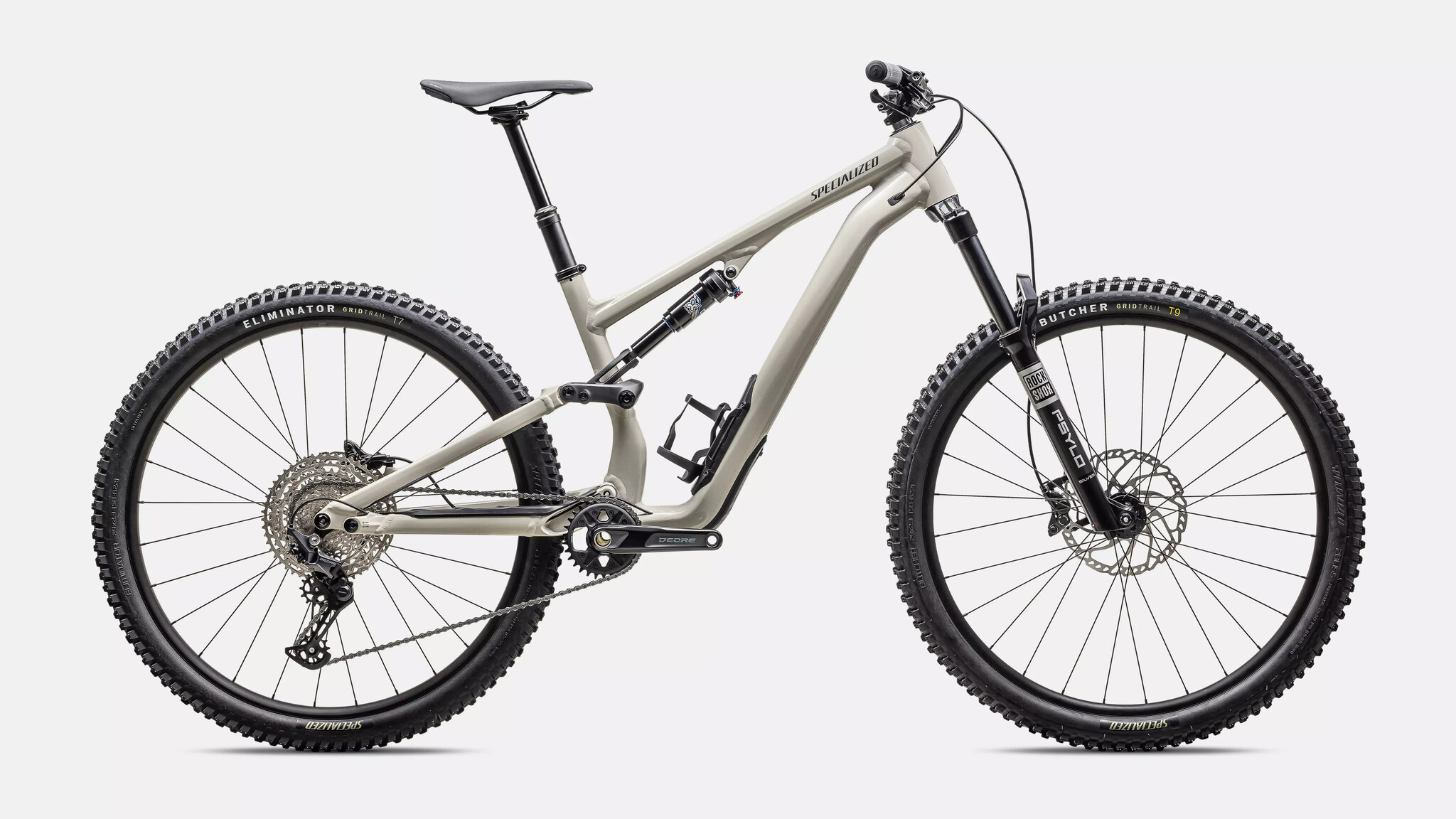

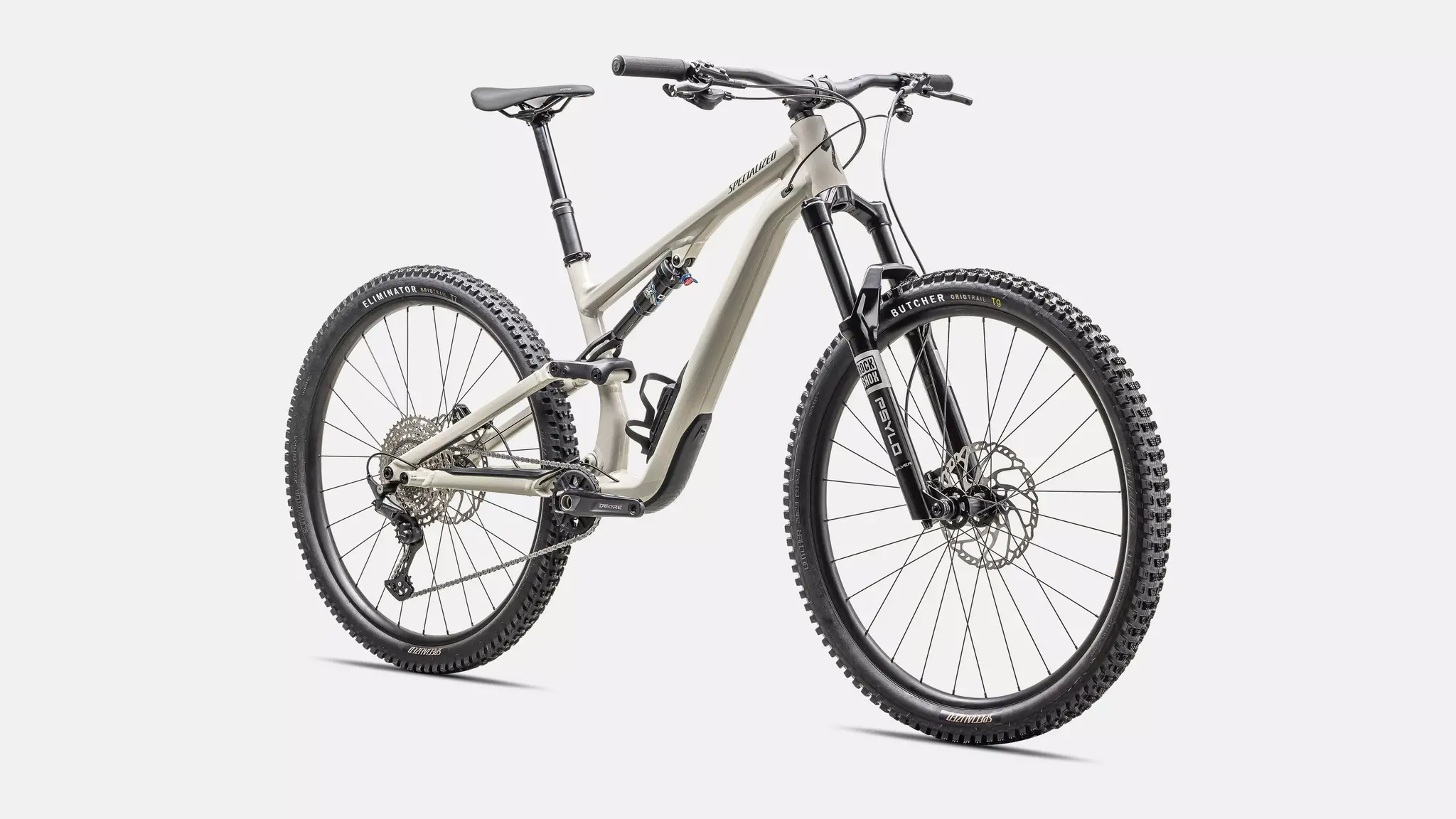

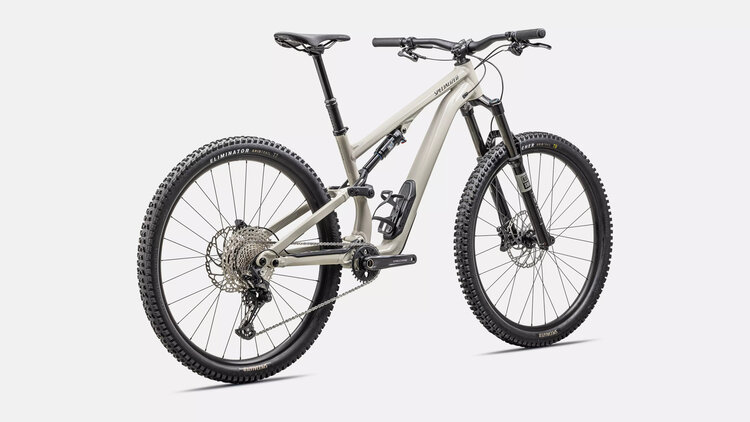

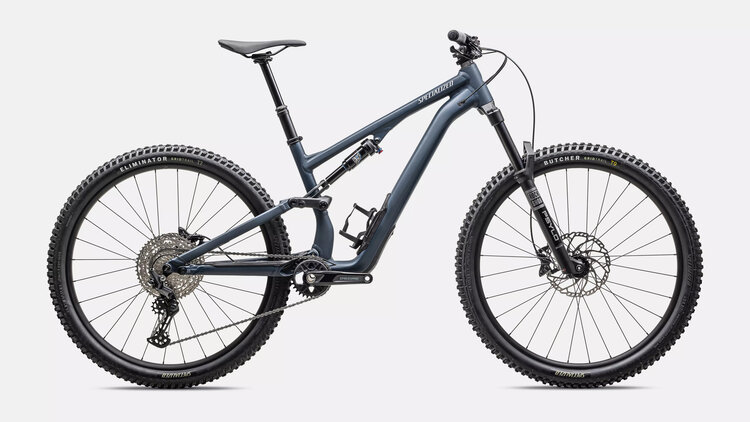

Stumpjumper 15 Alloy

Frame

M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder

Alloy, 38.6mm

SWAT

SWAT internal downtube storage

Rear Shock

X-Fusion 02 Pro RL, Ride Dynamics Trail Tune, rebound adjust, lockout S1:210x52.5mm, S2-S6:210x55mm

Fork

RockShox, Psylo Silver, Motion Control Damper, 15x110 axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel

Front Brake

Shimano, BR-MT420, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

Shimano, BR-MT420, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 203mm

Shift Levers

Shimano Deore, M6100, 12spd

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Cassette

Shimano Deore, M6100, 12spd w/Hyperglide+, 10-51t

Chain

Shimano Deore, M6100, 12-speed

Crankset

Shimano Deore, M6120, 30T ring, 55mm chainline, S1-S3:165mm, S4-S6: 170mm

Rims

Specialized Alloy, Tubeless Ready, 29mm internal width, 28h, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

Stainless, 14g

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"

Inner Tubes

Standard, Presta valve

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise

Grips

Specialized Trail Grips

Saddle

Bridge, Steel rails, S1-S2: 155mm, S3-S6: 143mm

SeatPost

TranzX Dropper, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm

Product ID

276239

Weight

16.57 kg (36 lb, 8.5 oz)

Weight Size

S4
