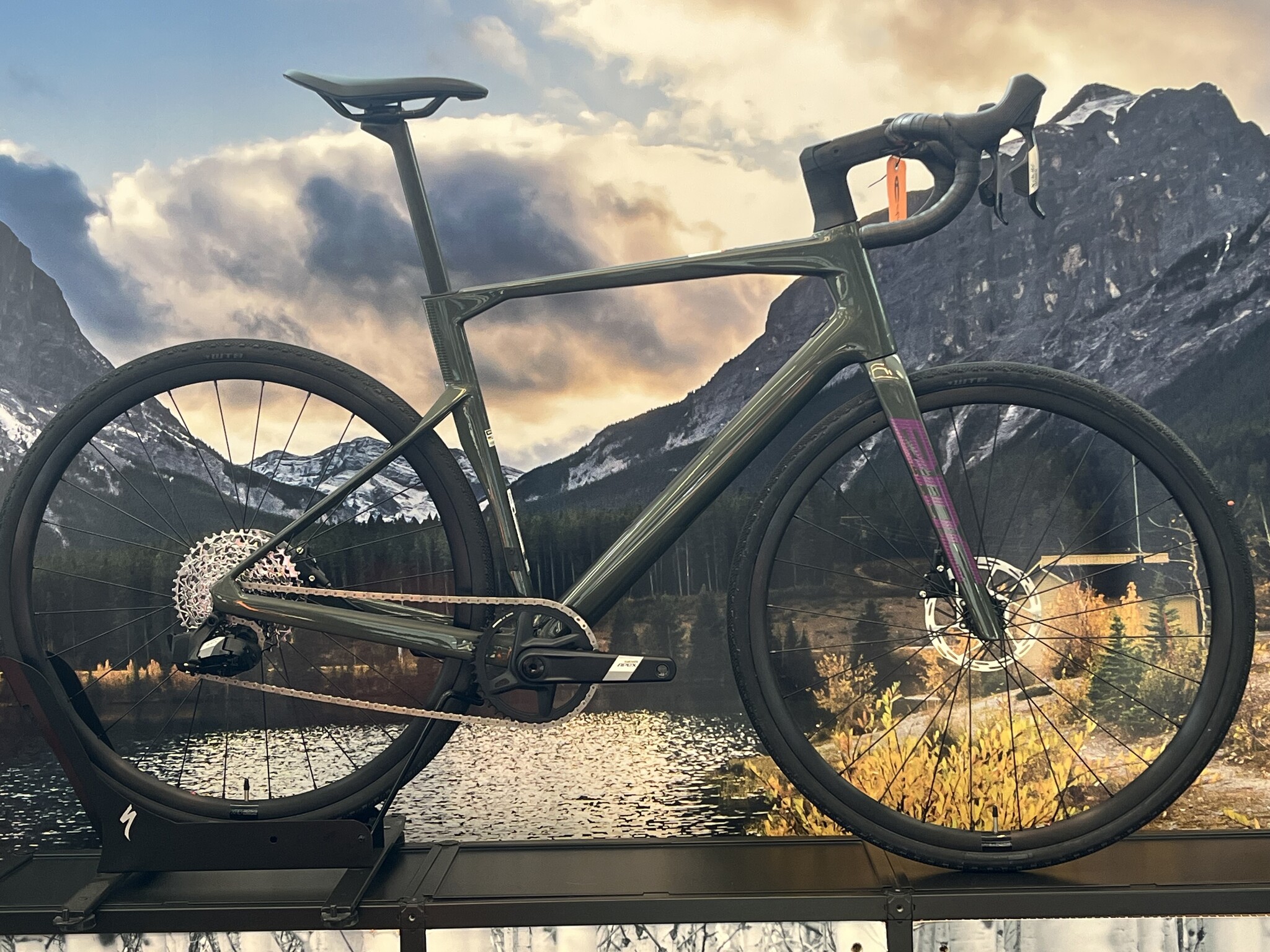

More capable, more comfortable, more adventurous, and more fun, the Roadmachine X is your invitation to go further. The complete build features a 1x SRAM Apex XPLR eTap AXS wireless groupset, XRD-522 wheels and gravel-ready 34mm WTB tires paired with the frameset that has full internal cable routing, a Premium Carbon D-Shape seatpost and ICS MTT suspension stem. It’s the Roadmachine that you’ve always wanted and needed.
ICS MTT Suspension Stem
More comfort on all surfaces. Using Redshift’s proven ShockStop technology, the BMC engineers were able to design an advanced and finely crafted suspension stem. Namely, the ICS MTT Suspension Stem gives riders up to 20mm of tunable suspension.
Fender Mounts
Our most winterproof bike is full-fender compatible, featuring mounting points on fork and frame for bolt-on fenders, plus BMC designed D-fender compatibility for the most simplified and lightweight approach to reducing road spray.
D-Shape Seatpost
The latest evolution of our signature D-shape seatpost is compatible with the Integrated Rear Light for safety and the D-fender to prevent road spray while still retaining its excellent aerodynamic performance and compliance.
TCC Endurance
The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.
SPECS
Frame:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle
Fork:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend
Seatpost:
Roadmachine 01 X Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle:
Fizik Terra Argo X5 | 150mm
Crankset:
SRAM Apex 1 DUB WIDE
Chainrings:
42T
Cassette:
SRAM Apex AXS XPLR (XG-1231)
Cassette Size:
11-44T
Chain:
SRAM Apex
Rear Derailleur:
SRAM Apex XPLR eTap AXS
Shifters:
SRAM Apex eTap AXS
Gears:
1 x 12
Brake Levers / Calipers:
SRAM Apex eTap AXS
Rotors:
SRAM Paceline
Rotor Size (F/R):
160 / 160mm
Rims:
XRD-522 | Tubeless Ready | 25 mm
Hubs (F/R):
XRD-522
Tires:
WTB Byway | Distance+ Compound | TCS Light bead | Tubeless Ready | 34mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Tire Clearance:
40mm
Weight without Pedals:
8.9 kg
ASTM Classification:
Level 2
System Weight Limit:
110kg
