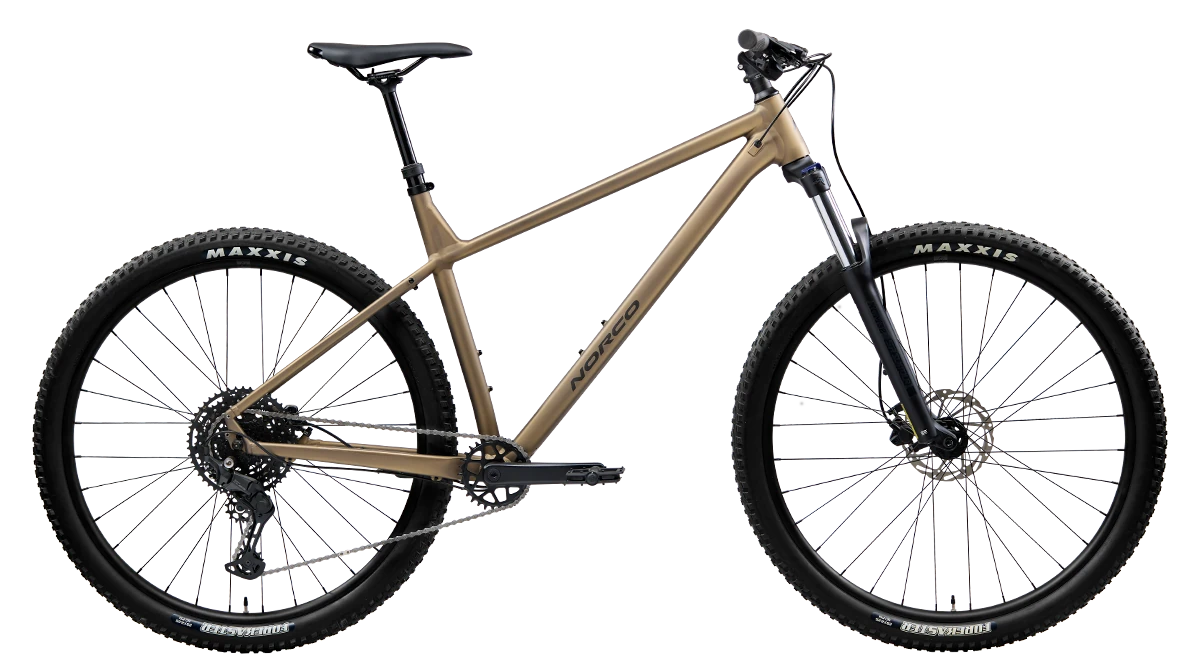

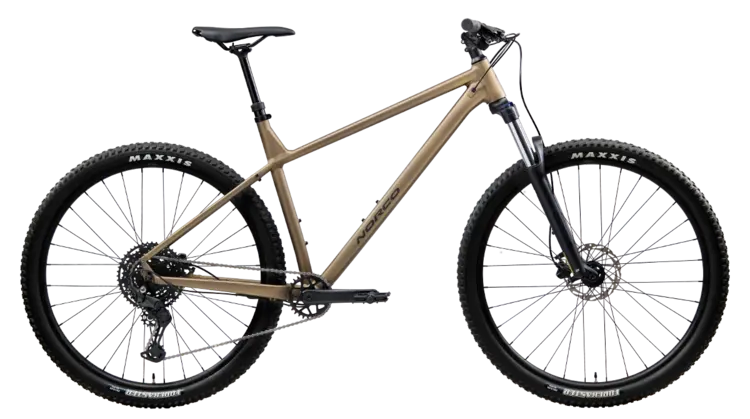

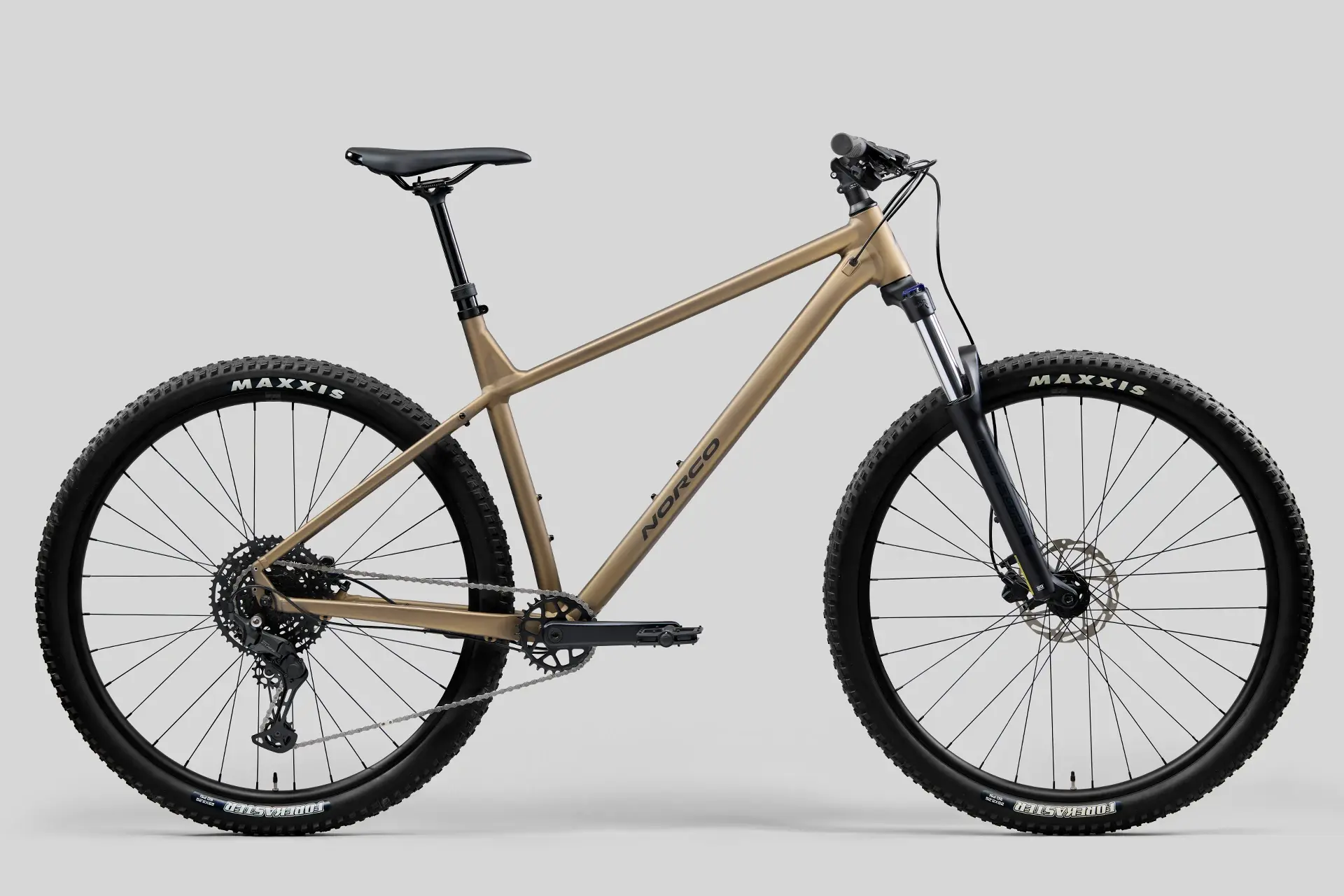

Norco Storm 120

Nimble, confident trail performance.

The Storm provides a more forward weight distribution within an extended wheelbase for powerful, efficient pedaling, increased climbing traction and added grip and control on descents.

Comfort and control on the trail.

The perfect amount of suspension travel for off-road adventure and exploration, without feeling like you're carrying around extra weight or bulk when you don't need it.

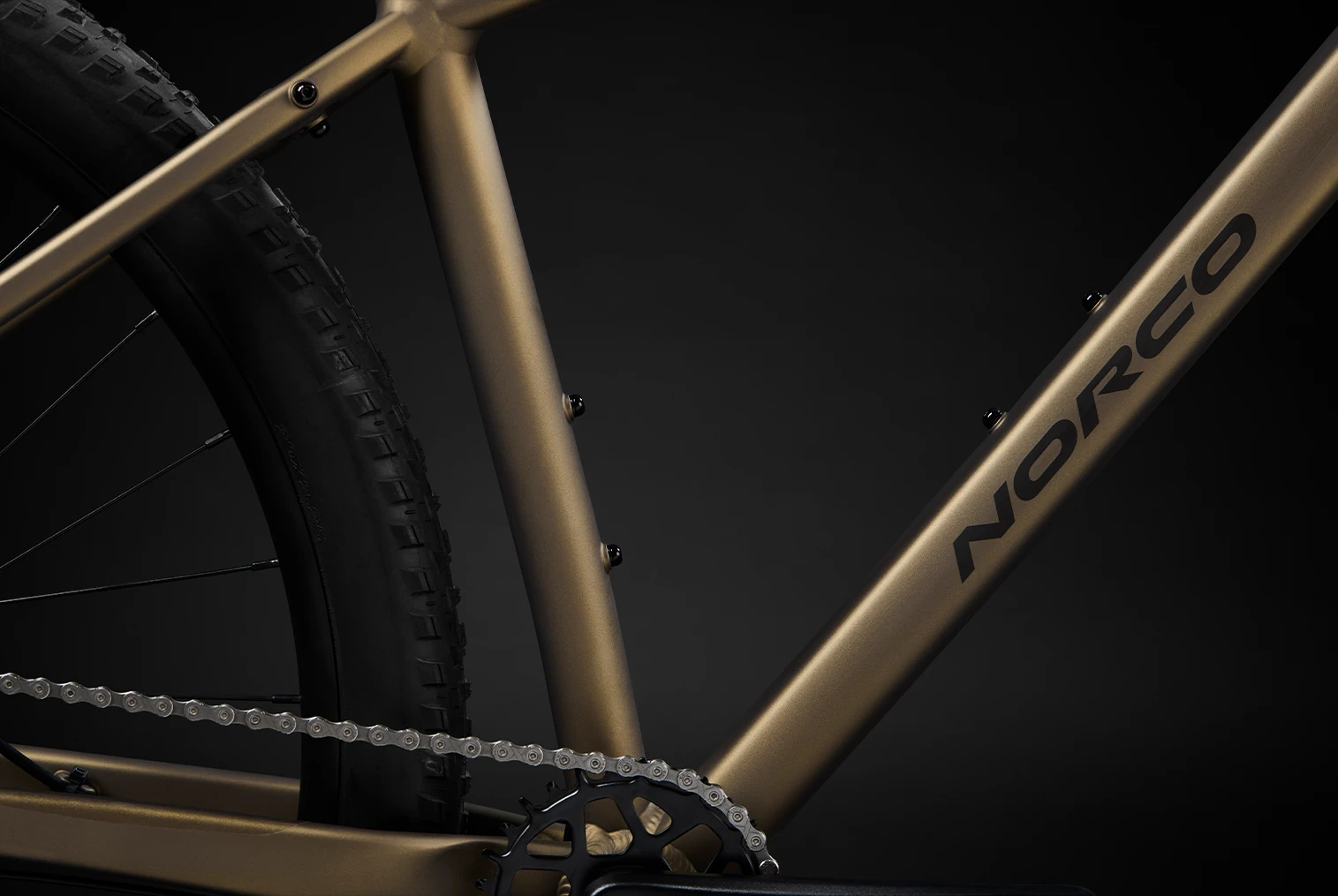

Mechanical systems protected from the elements.

By routing brake and shift cables within the frame, they are kept out of harm's way and critical systems work longer between services.​

Stop on a dime.

The Storm 120 and one of the Storm 100 models comes equipped with hydraulic brakes, while the other Storm 100 model has mechanical brakes, so you can choose what works best for you without compromising on powerful braking.

SPECS

Frame

Frame: Aluminum, Smooth Welding, 10x135mm QR, Tapered HT
Fork: SR Suntour XCM32LO w/ lockout, 120mm, 46mm offset, 15x100mm

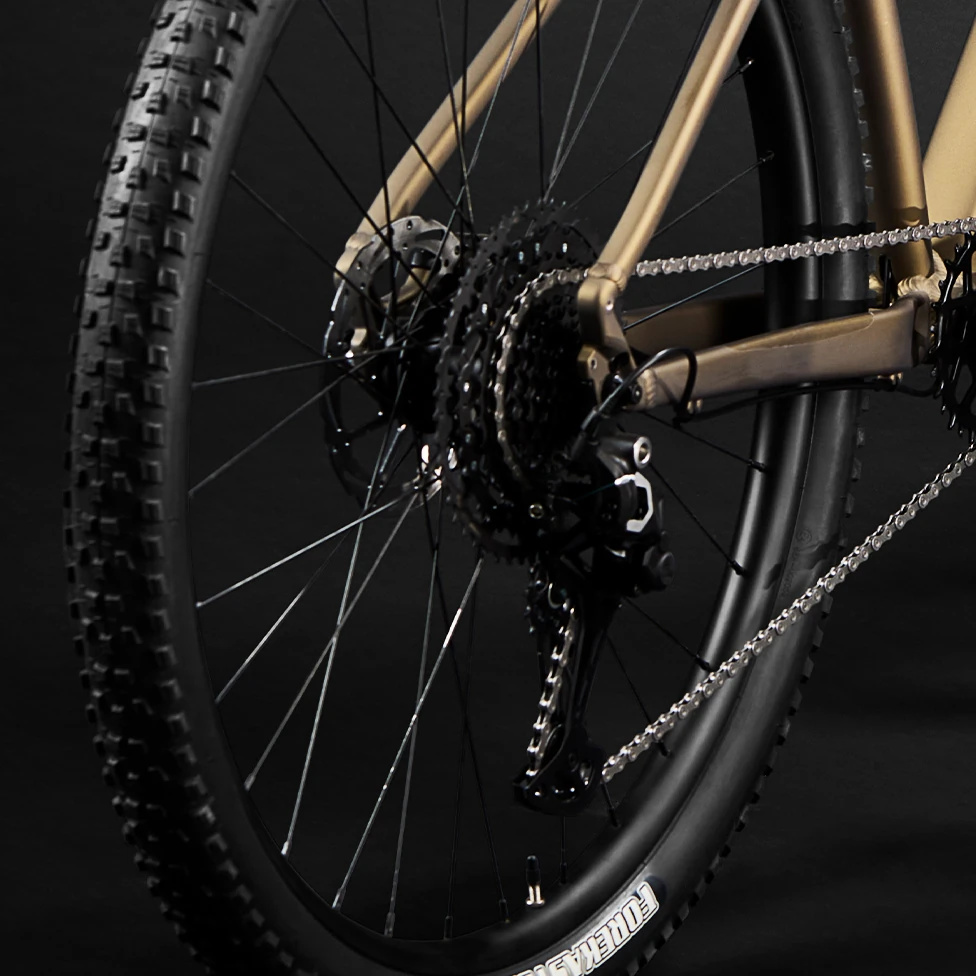

Drivetrain

Rear Shifter: Shimano Cues SL-U6000-10R, 10sp
Rear Derailleur: Shimano Cues RD-U6000, 10sp, GS
Crankset: Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket: Cartridge, ST 73mm, 113mm axle length
Cassette: Shimano Cues CS-LG300-10, 11-48T, 10sp
Chain: KMC Cues XGlide 9/10/11

Brakes

Front Brake: Tektro HD-M275, Resin pads
Front Brake Rotor: Tektro, 160mm, 6-bolt
Rear Brake: Tektro HD-M275, Resin pads
Rear Brake Rotor: Tektro, 160mm, 6-bolt
Brake Levers: Tektro HD-M275

Components

Handlebar: 6061 Alloy DB, 750mm (S) / 780mm (M,L,XL,XXL), 30mm rise
Stem: Alloy, 50mm Length, 31.8mm Clamp
Seatpost: X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M,L/XL/XXL)
Headset: Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" (IS42/28.6 | IS52/40)
Headset Spacer: 3x10mm
Saddle: Norco XC, Steel Rail
Grips: DDK Lock-On, 139mm length
Pedals: Nylon Flat Pedal
Seatpost Clamp: Norco Alloy QR, 34.9mm ID

Wheels

Front Hub: Formula DC51, 15x100mm, 32h, 6-bolt
Rear Hub: Formula DC-1422, 10x135mm QR, HG, 32h, 6-bolt
Rims: DP 27 Rims, 27mm ID, 32H
Front Tire: Maxxis Forekaster, 29x2.25" (27.5x2.25" for size S), Wire
Rear Tire: Maxxis Forekaster, 29x2.25" (27.5x2.25" for size S), Wire
Spokes/Nipples: Stainless Steel, 14g

Weight

Weight: 14.59 kg (32.1 lbs)
Weight (Size): L
