The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Sizes
27.5: XS, S, 29: S, M, L, XL, XXL
Colours

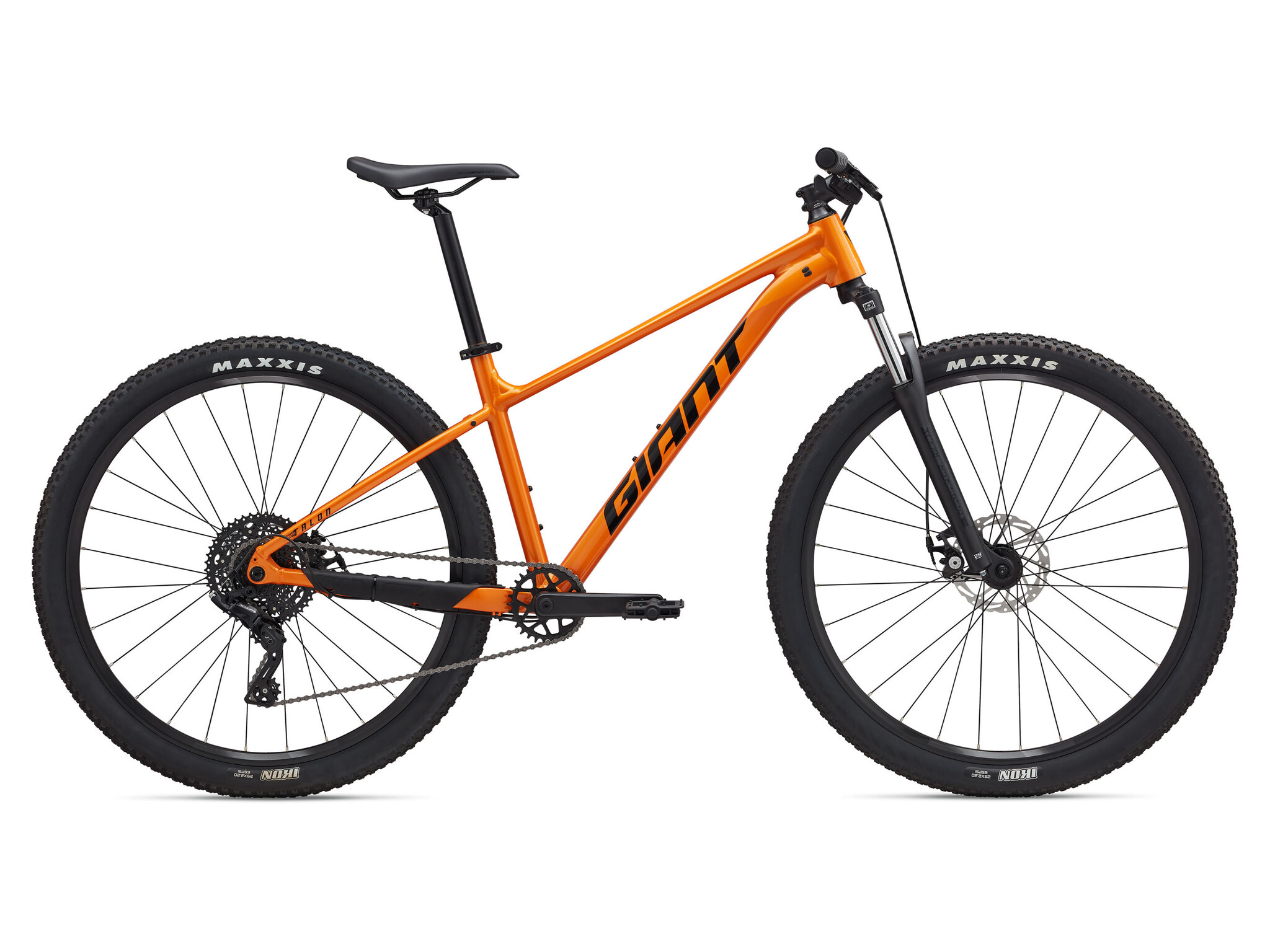

Radiant Orange, Black
Frame
ALUXX-grade aluminum, disc
Fork
SR Suntour XCE, QR, steel steerer, XS, S: 80mm travel (27.5), S, M, L, XL, XXL:100mm travel (29)
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O
Stem
Giant Sport, 7-degree
Seatpost
Giant Sport, 30.9
Saddle
Giant ErgoContact Trail
Pedals
platform
Shifters
microSHIFT Acolyte, 1x8
Front Derailleur
N/A
Rear Derailleur
microSHIFT Acolyte, RD-M5185M with clutch
Brakes
Tektro TKB-172, mechanical, [F]160mm, [R]160mm rotors
Brake Levers
Tektro RS360A
Cassette
microSHIFT Acolyte, 8-speed, 12x46
Chain
KMC 8.1
Crankset
ProWheel, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
Bottom Bracket
cartridge
Rims
Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
Hubs
alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle
Spokes
stainless
Tires
Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, 60 TPI, wire bead
Extras
2.4" max tire size, max chainring 32t
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
