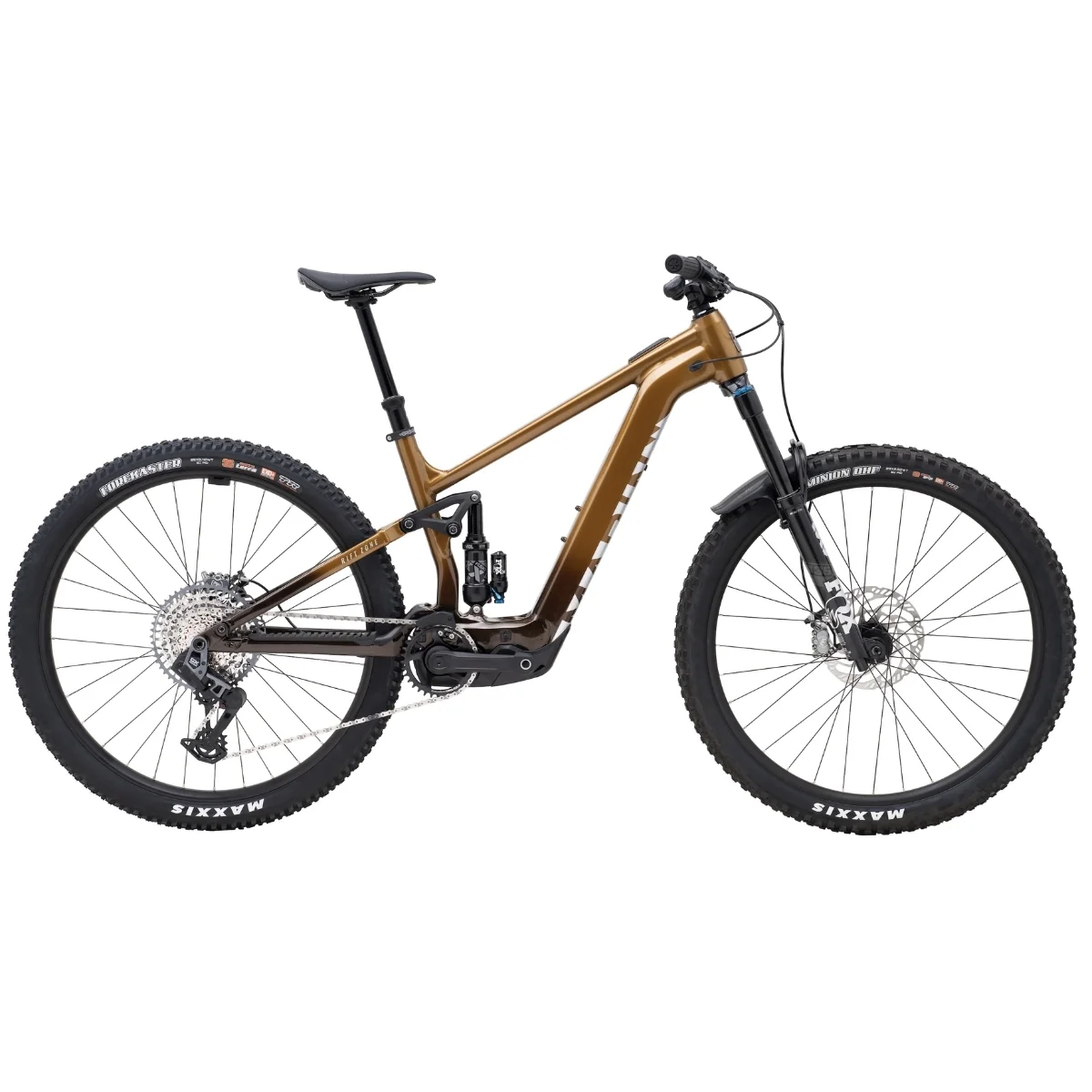

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget it's an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.
App
Bosch eBike Flow App
Range
15-55 miles/25-90km
Display
Bosch BRC3100 Systems Controller
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
Bosch 400 Wh Internal (Optional PowerMore 250wh external battery using PowerMore 150mm cable EB12.120.036)
Motor
Bosch Performance Line SX, 600W, 55Nm
Frame
All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset
Rear Suspension
Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rim
Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible
Hub Rear
Formula DC-711, 110x15, 6-Bolt, 32H
Hub Front
Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
Spokes
14g Black Stainless Steel
Tires
Front: Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forekaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
SRAM GX AXS T-Type
Shift Lever
SRAM AXS Pod Infinity Mount
Crankset
e*thirteen e*spec Plus, 160mm Length, 34T
Cassette
SRAM CS-XS-1275 T-Type, 10-52T
Brakes Front
Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Brakes Rear
Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Brake Levers
Magura MT7 with HC3 Lever
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm
Saddle
Marin Speed Concept
