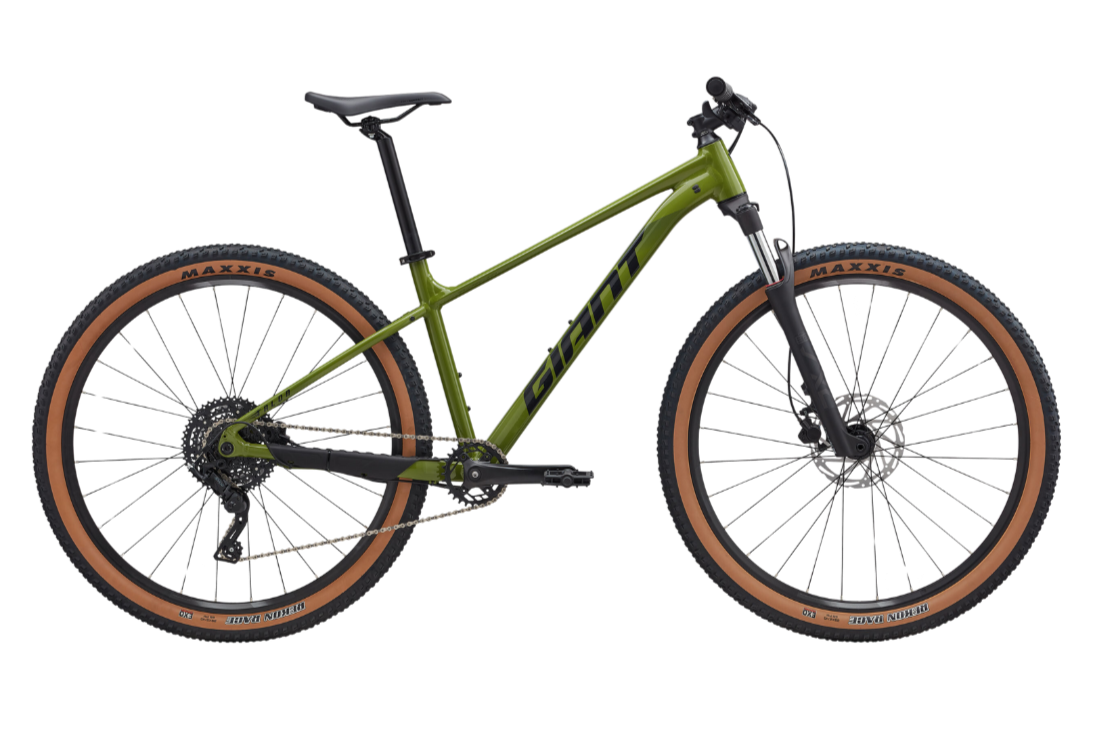

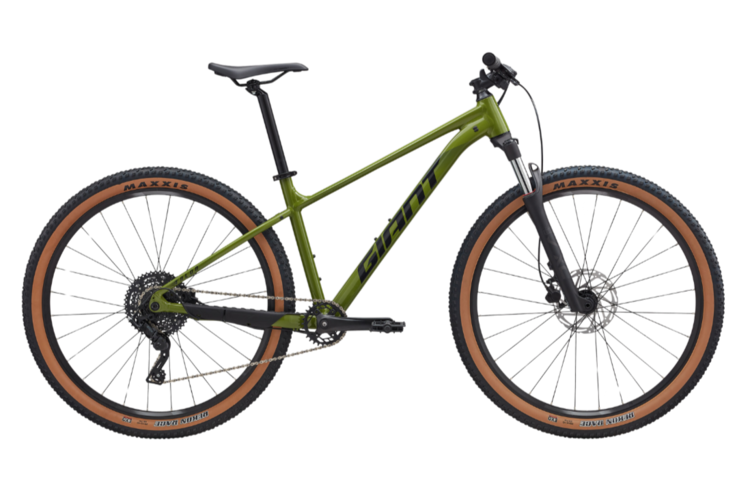

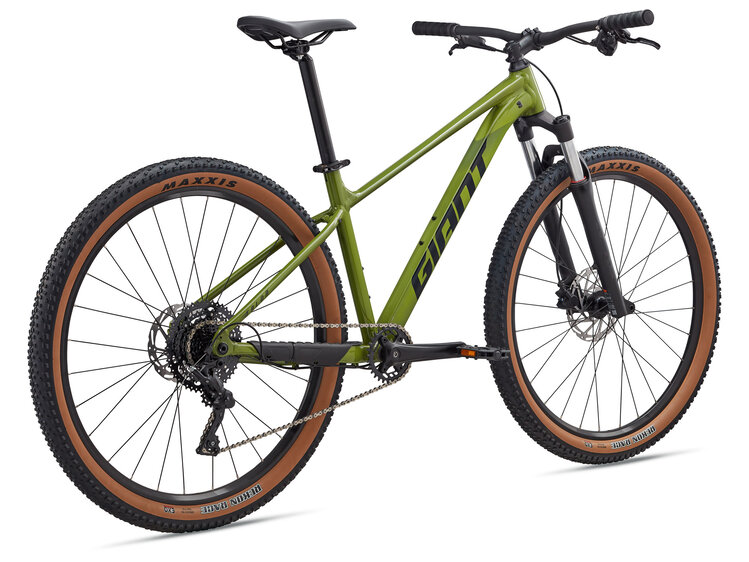

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring mtb rider needs to evolve and advance. *on select models
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
SPECS
Frame
ALUXX-grade aluminum, disc
Fork
Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle
XS, S: 80mm (27.5) travel
S, M, L, XL, XXL: 100mm (29) travel
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O
Stem
Giant Sport, 7-degree
Seatpost
Giant Sport, 30.9
Saddle
Giant ErgoContact Trail
Pedals
Platform
Shifters
microSHIFT Advent, 1x9
Front Derailleur
N/A
Rear Derailleur
microSHIFT Advent RD-M6195M with clutch
Brakes
Tektro HDC M275, hydraulic
Tektro rotors — Front: 180mm / Rear: 160mm
Brake Levers
Tektro HDC M275
Cassette
microSHIFT Advent, 9-speed, 11x46
Chain
KMC X9
Crankset
ProWheel Charm
• 32t (27.5)
• 30t (29)
• 52.5mm chainline
Bottom Bracket
Cartridge
Rims
Giant GX03V 27.5 or 29, alloy, double wall, 21mm internal width
Hubs
Alloy, sealed bearing
Front: 15x110 thru-axle
Rear: 12x142 thru-axle
Spokes
Stainless
Tires
• Maxxis Rekon 27.5x2.4"
• Maxxis Rekon Race 29x2.4"
60 TPI, wire bead
Extras
Max tire size: 2.4"
Max chainring size: 32t
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you.
Weight varies by size, finish, hardware, and accessories.
