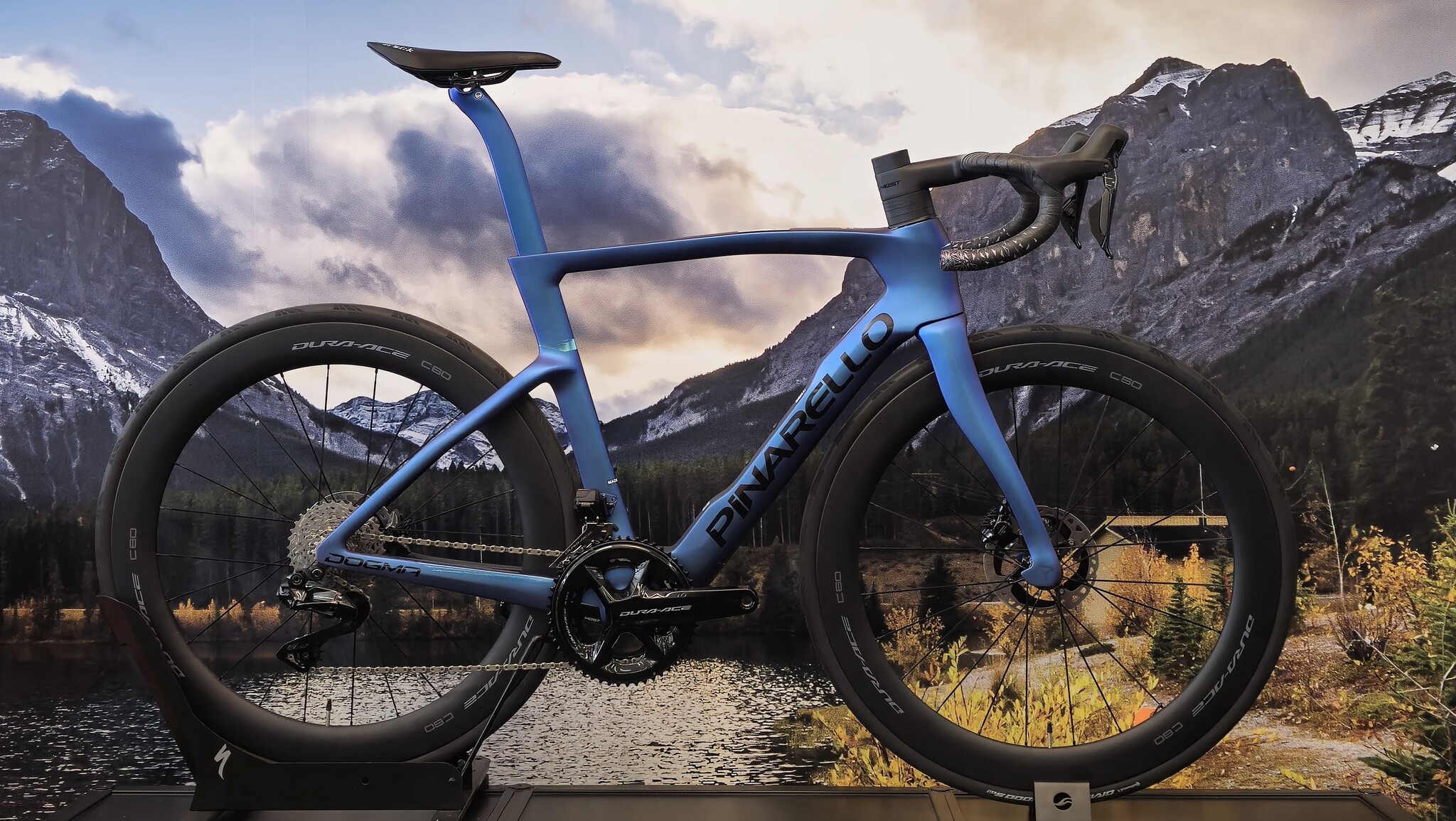

Seven of the last 11 Tours de France have been conquered on a DOGMA, and the latest generation is now ready to continue that legacy of success. This is the culmination of all of our skill and experience, a masterpiece of engineering that offers advancements in handling, comfort, and aerodynamics all wrapped in a package that can climb, descend, and sprint with equal flair. Whatever the road throws at you, the DOGMA F is always the right bike.
DESIGNED TO EXCEL IN ANY SITUATION
Pinarello has never followed the trends of other manufacturers by trying to convince cyclists they need specialist bikes for both climbing, and on the flat. Instead, with the DOGMA, we have produced a single frame capable of delivering exceptional performance on any terrain, for both amateur riders and world-class professionals alike. Whilst many of our competitors are now reverting back to that model, we never deviated in the first place; the DOGMA is the original all-rounder – and the bike that has been ridden to more Grand Tour successes than any other.
NEW M40X CARBON FIBRE
The DOGMA evolves, changing its skin to surprise you one more time.
We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes.
This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.
MARGINAL GAINS
When details really matters. Every shape, every detail, every new line on the bike has been designed to reduce the CDA by 0.2% (weighted average over different yaw angles).
We worked on a series of small but important improvements, all developed using the latest Computational Fluid Dynamics (CFD) simulations and countless hours in the wind tunnel.
SPECS
FRAME: TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK: NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer

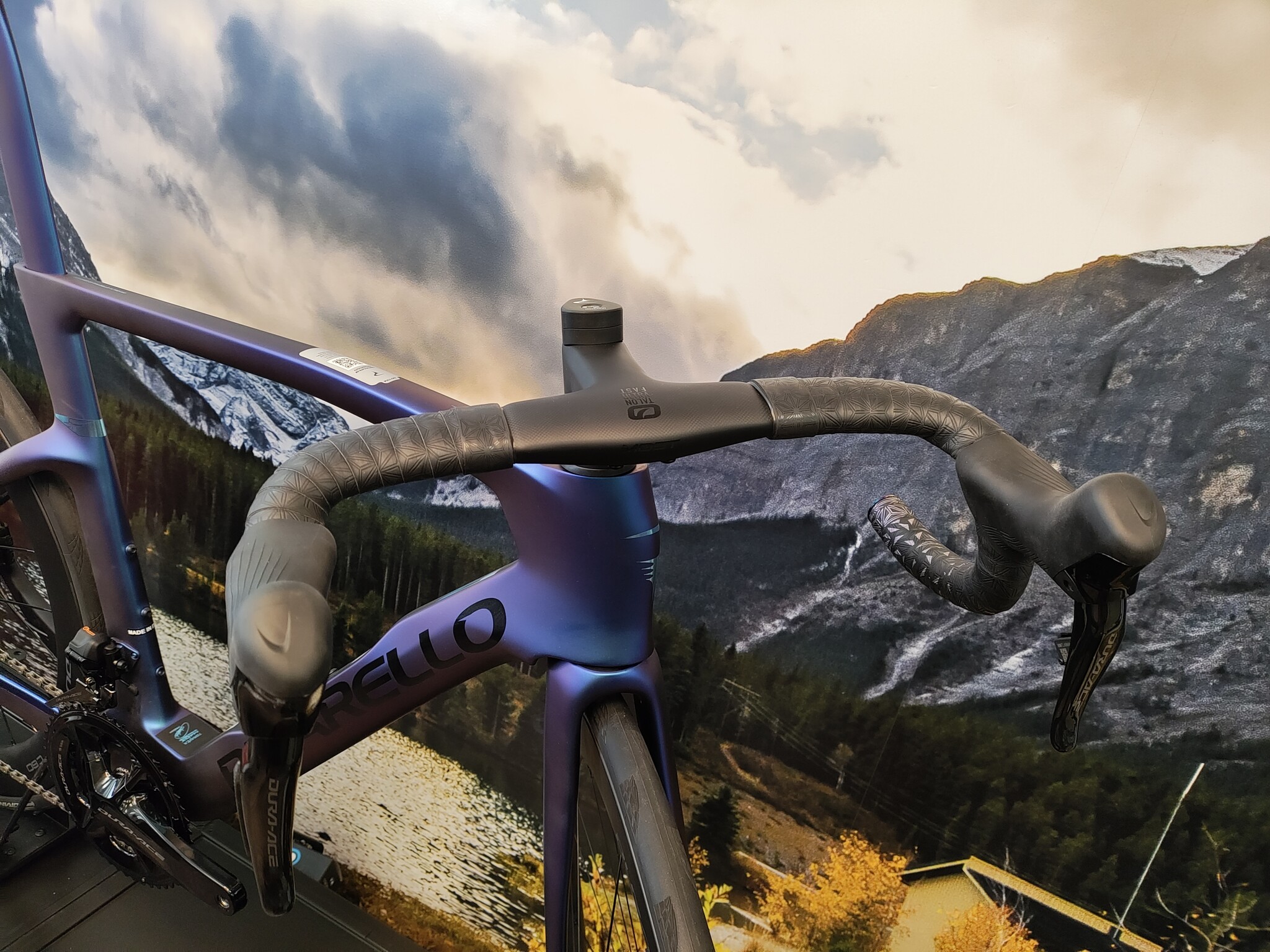

HANDLEBAR: MOST Talon Ultra Fast
BAR TAPE: Supacaz Super Sticky Kush Grip Tape Starfade Oil Slick
SEATPOST: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
SADDLE: Fizik Argo R1 - 150mm - Vento
PEDALS: N/A

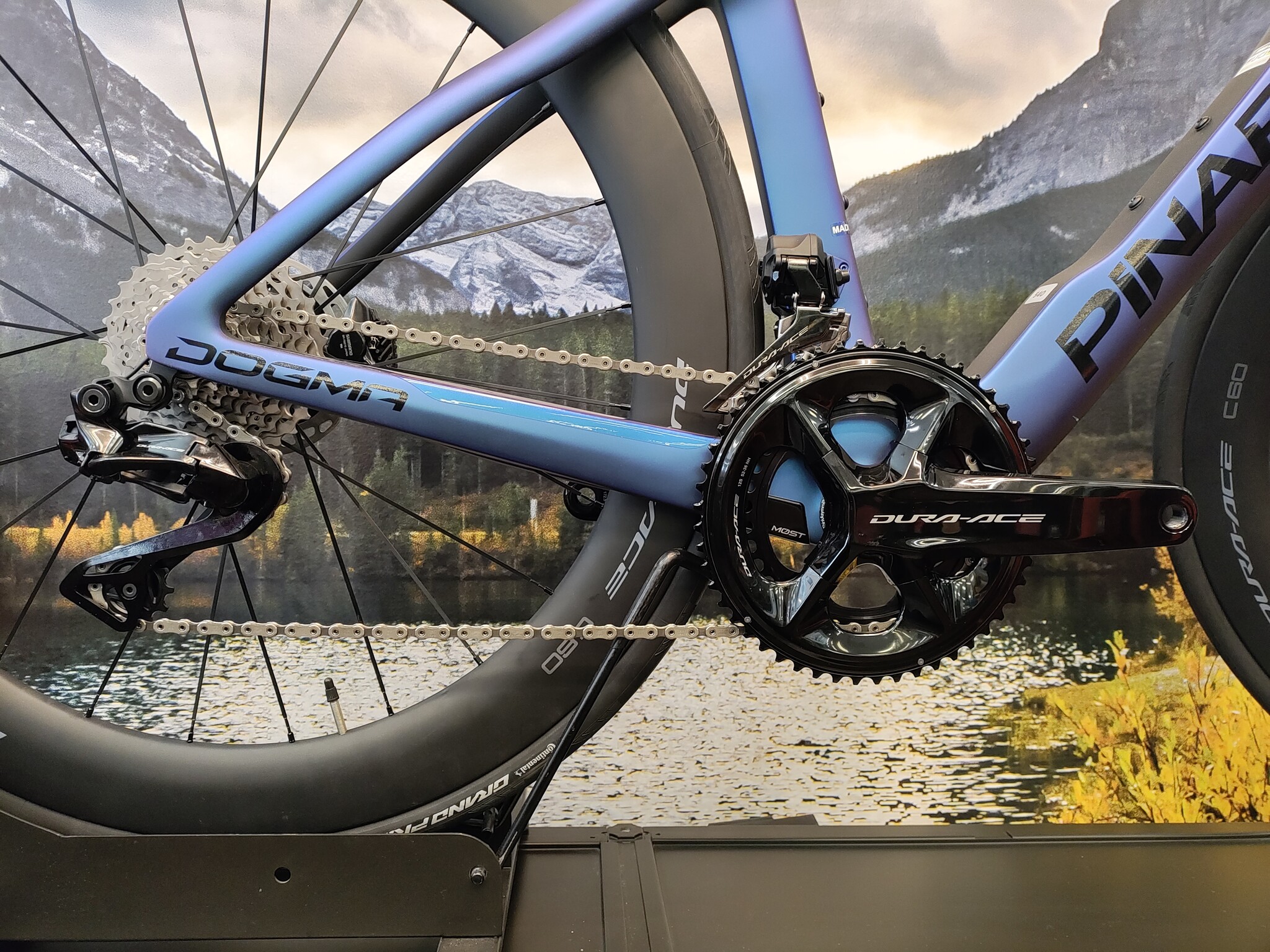

SHIFTERS: Shimano Dura-Ace Di2 12spd
FRONT DERAILLEUR: Shimano Dura Ace FD-R9250 Front Derailleur, 2x12, Swing: Down, Cable Pull: Di2, Braze-on, IFDR9250F
REAR DERAILLEUR: REAR DERAILLEUR, RD-R9250, DURA-ACE, 12-SPEED, TOP NORMAL, SHADOW DESIGN, DIRECT ATTACHMENT (DIRECT MOUNT COMPATIBLE), W/TL-EW300
ROTORS: Shimano RT-MT900 Rotor 160MM, W/LOCK RING
Shimano RT-MT900SS 140MM XTR Rotor W/LOCK RING
BRAKE LEVERS: Shimano, Dura Ace Di2 ST-R9270 / BR-R9270, Road Hydraulic Disc Brake, Flat mount, 140 or 160mm (not included), 175g, Black, IR9270DLF6SC100F
CASSETTE: Shimano Dura Ace CS-R9200 12 Sp. 11-34T ICSR920012134
CHAIN: Shimano CN-M9100 XTR 126 LINKS FOR 12 SPEED, W/QUICK-LINK
FRONT CHAINWHEEL: FC-R9200, DURA-ACE, FOR REAR 12-SPEED, HOLLOWTECH 2, 172.5MM, 52-36T W/O CG, W/O BB PARTS
BOTTOM BRACKET: BB Infinite-ITALIAN THREADED SHIMANO ROAD BOTTOM BRACKET- WS2 COATED CERAMITECH
RIMS: Dura Ace C60 Wheelset
TIRES: Continental Grand Prix 5000 S TR Folding Black + Black Chili Black/Black 28
