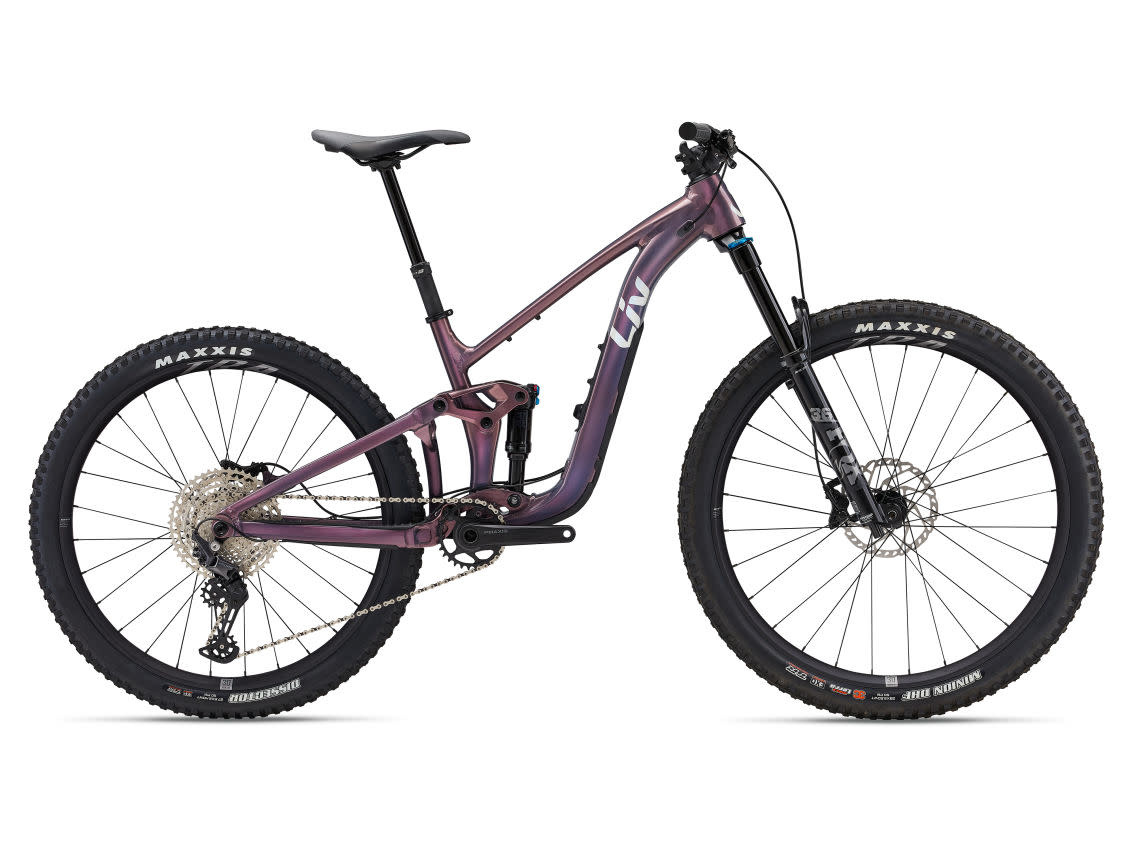

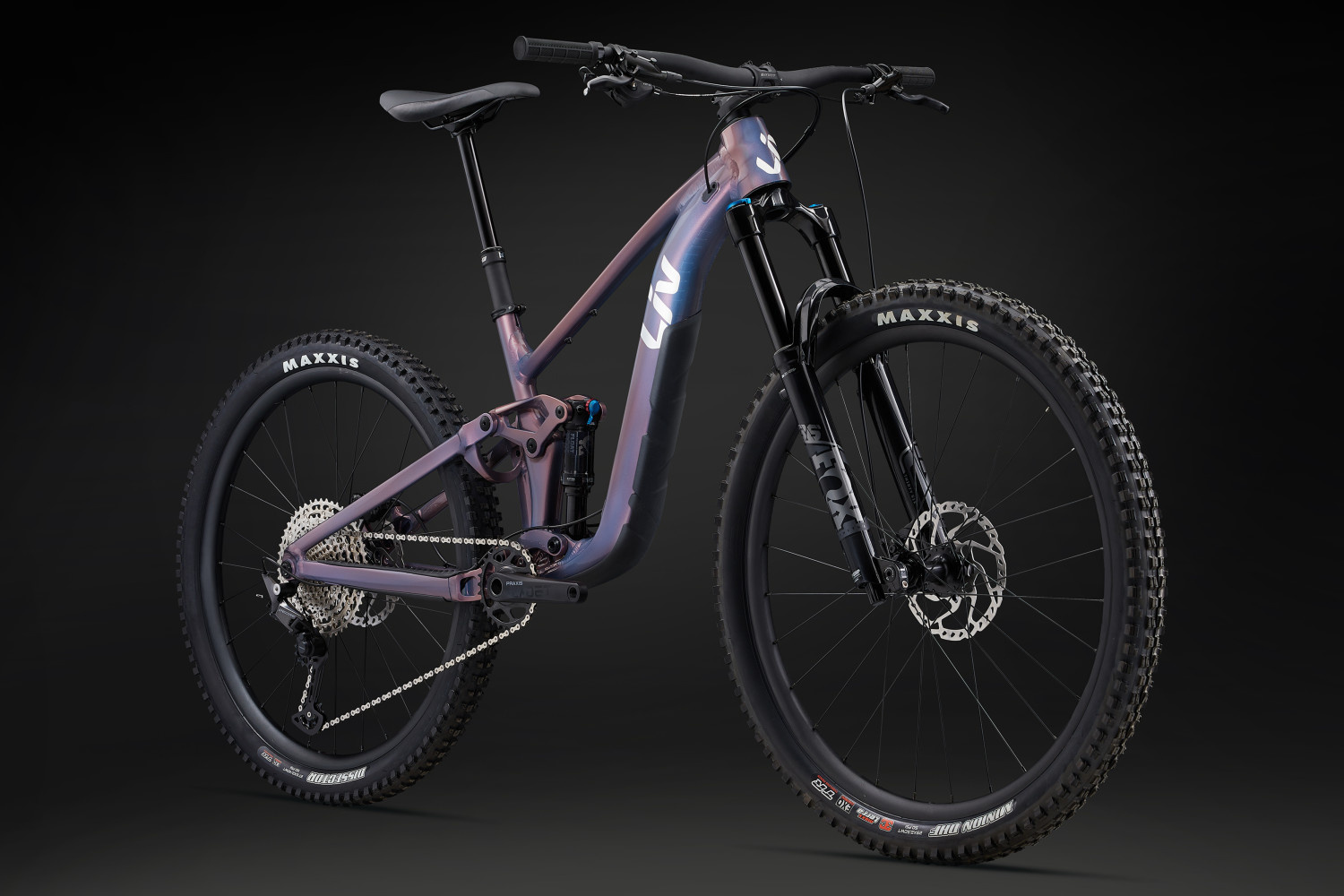

The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Performance Mid Travel Trail

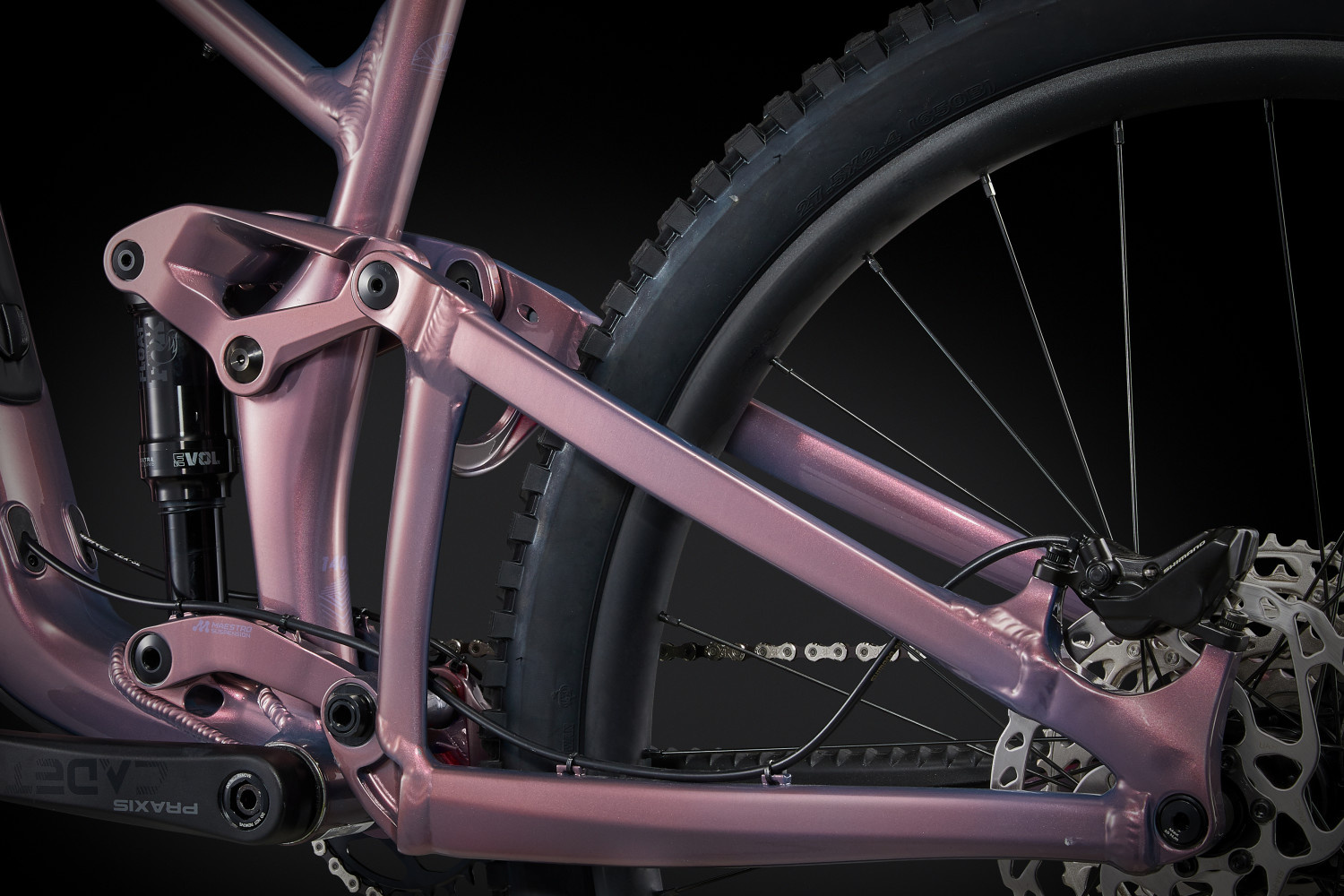

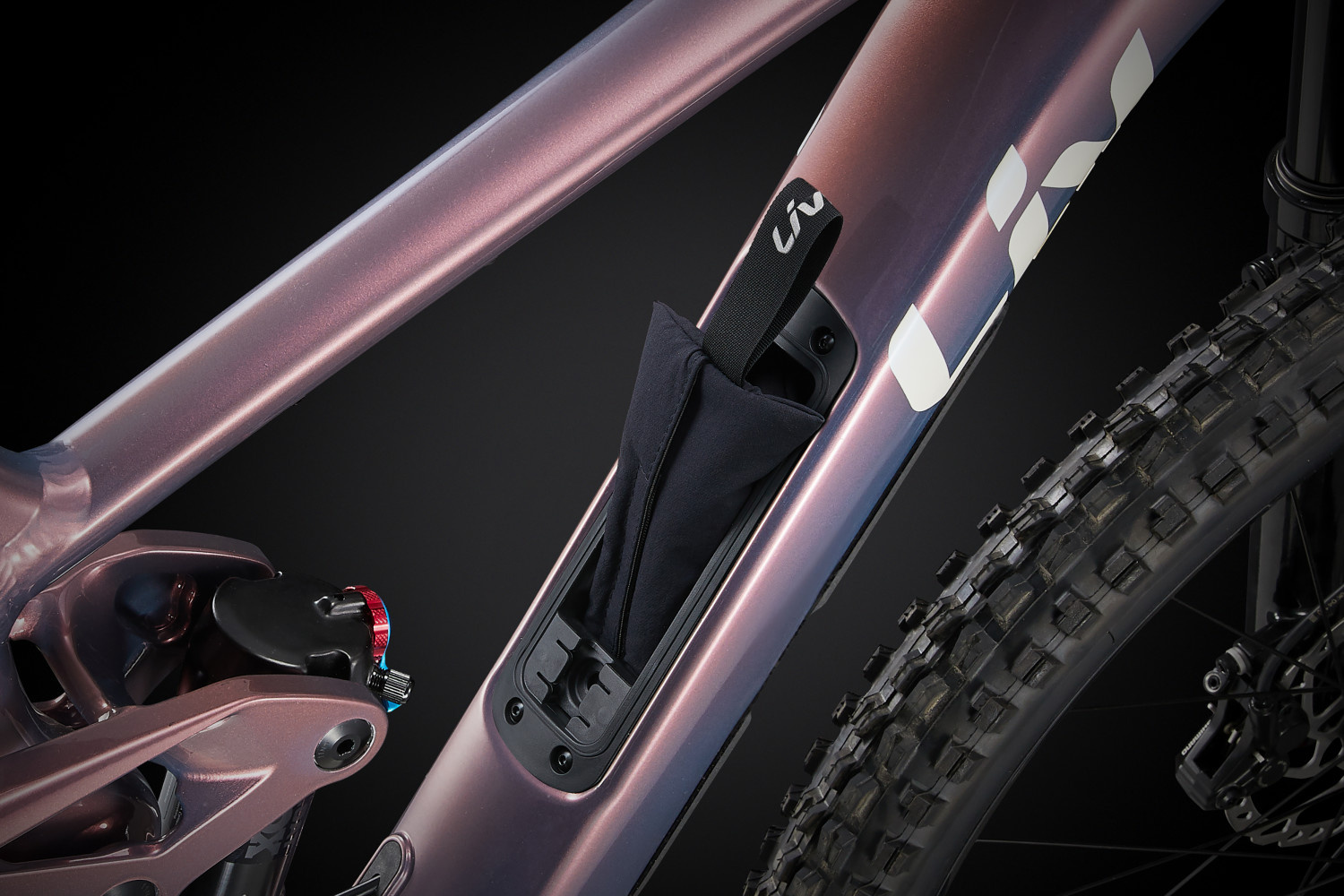

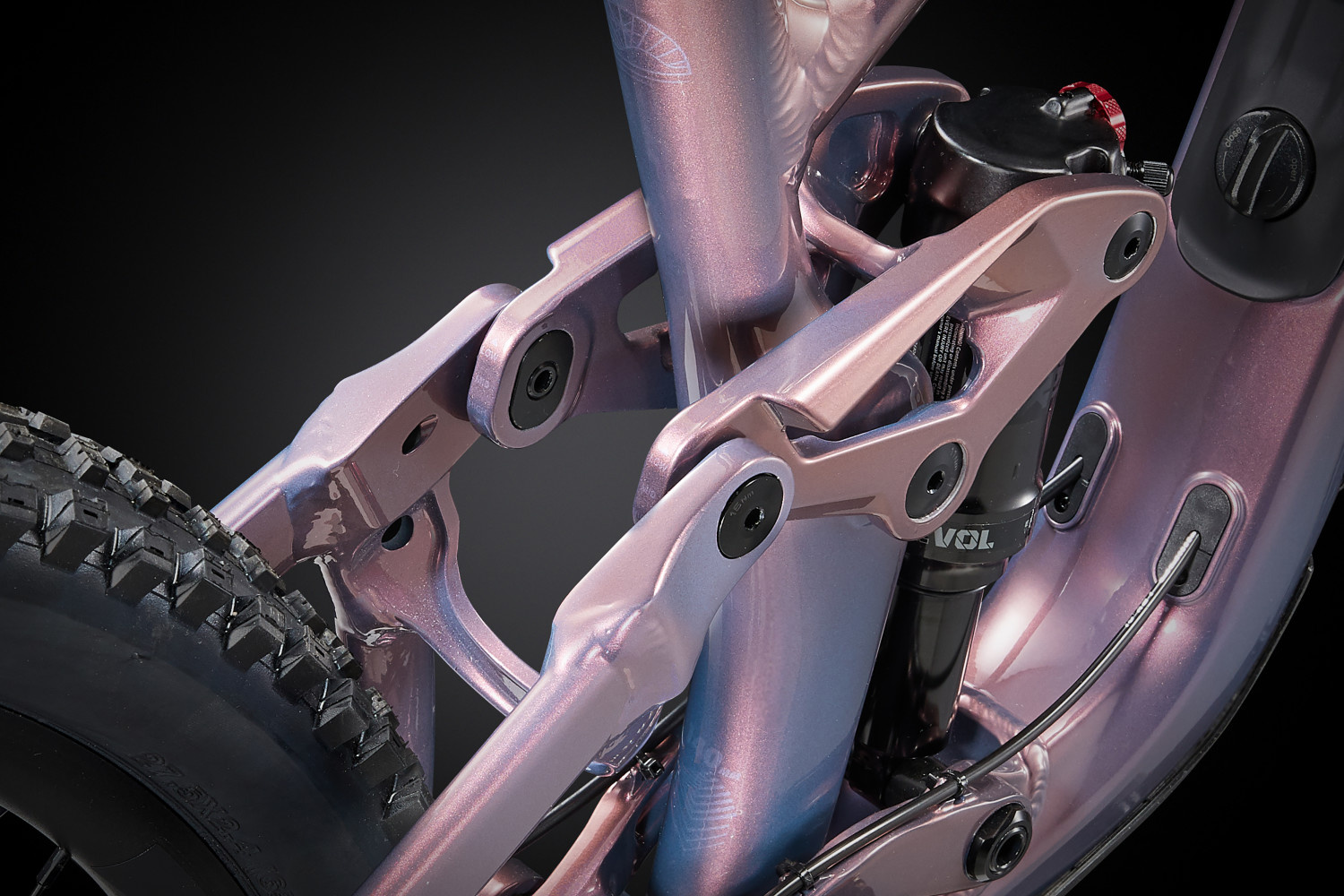

Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry

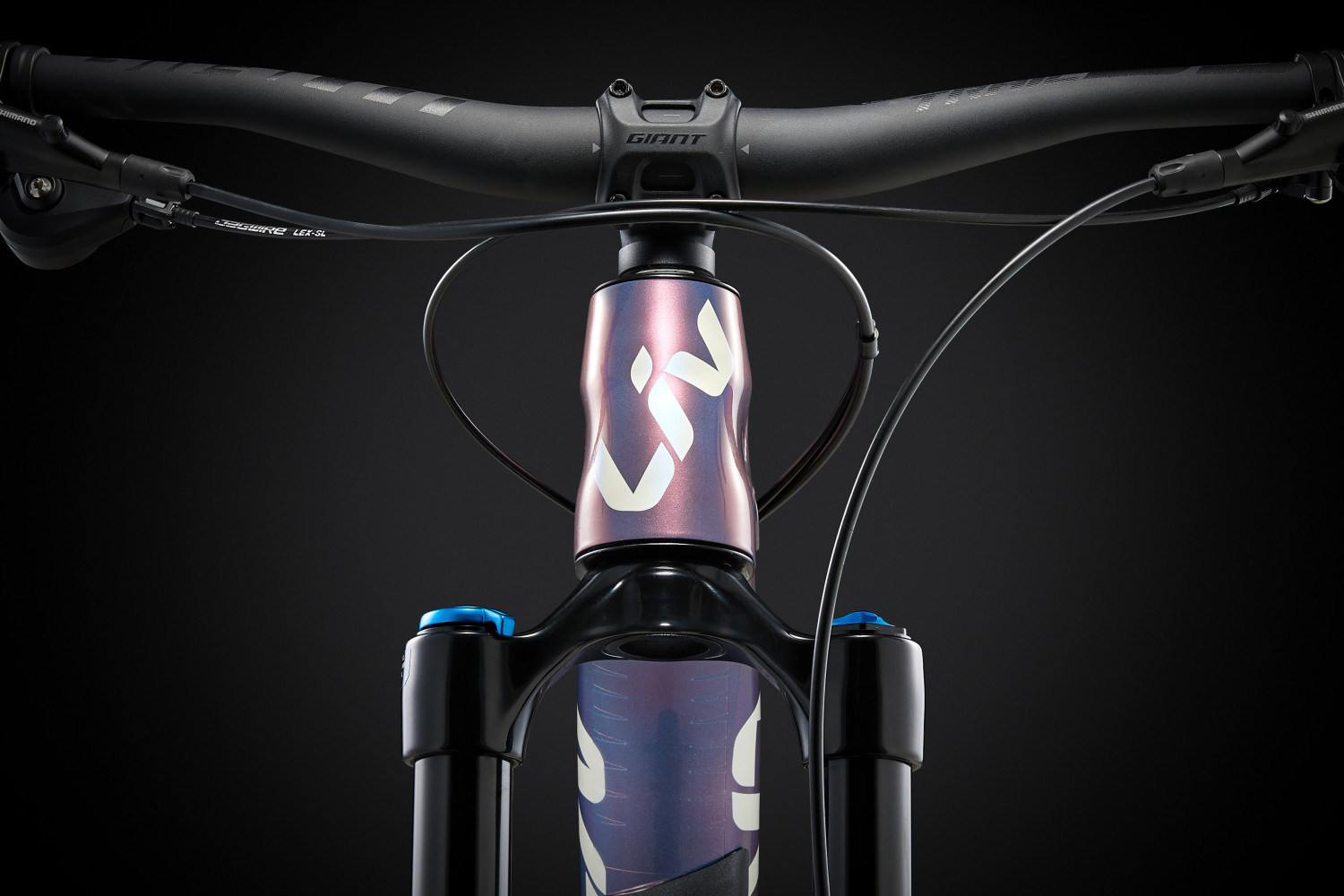

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
SPECS
Sizes:
XS, S, M, L
Colours:
Desert Dawn
Frame:
ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated downtube storage
Fork:
Fox 36 Float Rhythm, 150mm travel, GRIP damper, Boost 15x110 Kabolt X axle, tapered steerer, 44mm offset
Shock:

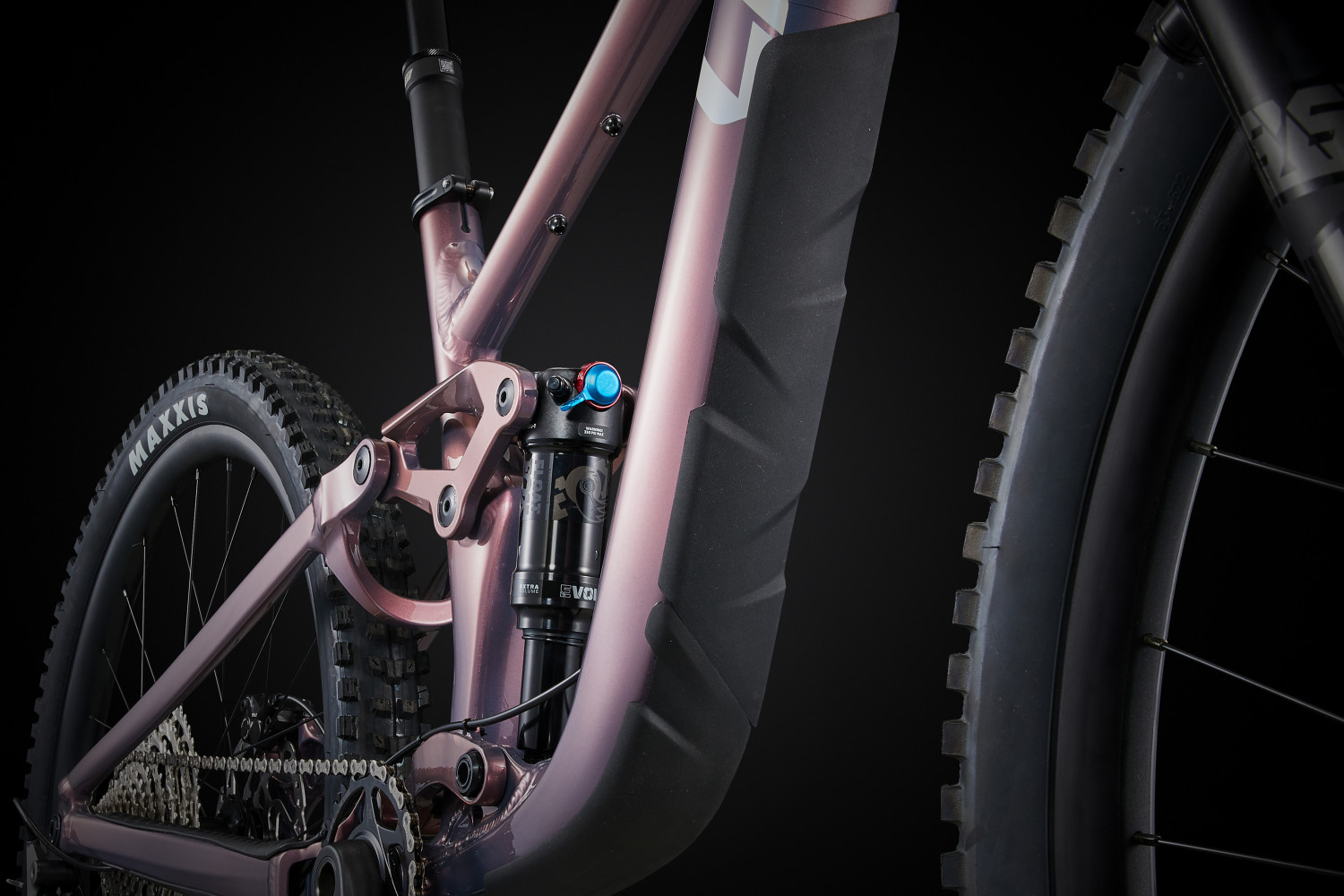

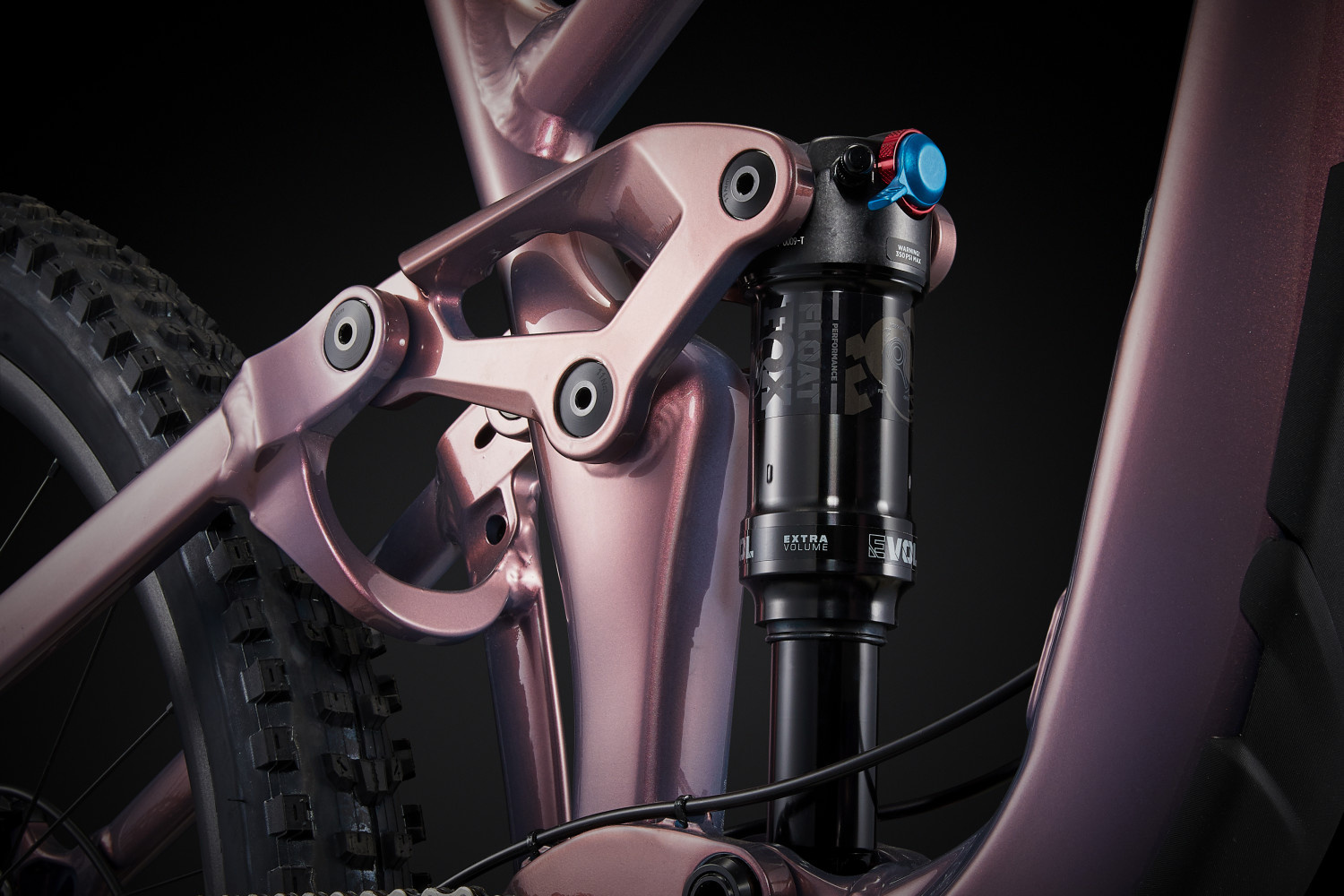

Fox Float Performance, 185x52.5mm, custom tuned for Liv
Handlebar:
Giant Contact TR35, 20mm rise, alloy
-
XS/S/M: 760mm width
-
L: 780mm width
Grips:
Liv Tactal Pro single lock-on
Stem:
Giant Contact SL, 35mm clamp
Seatpost:

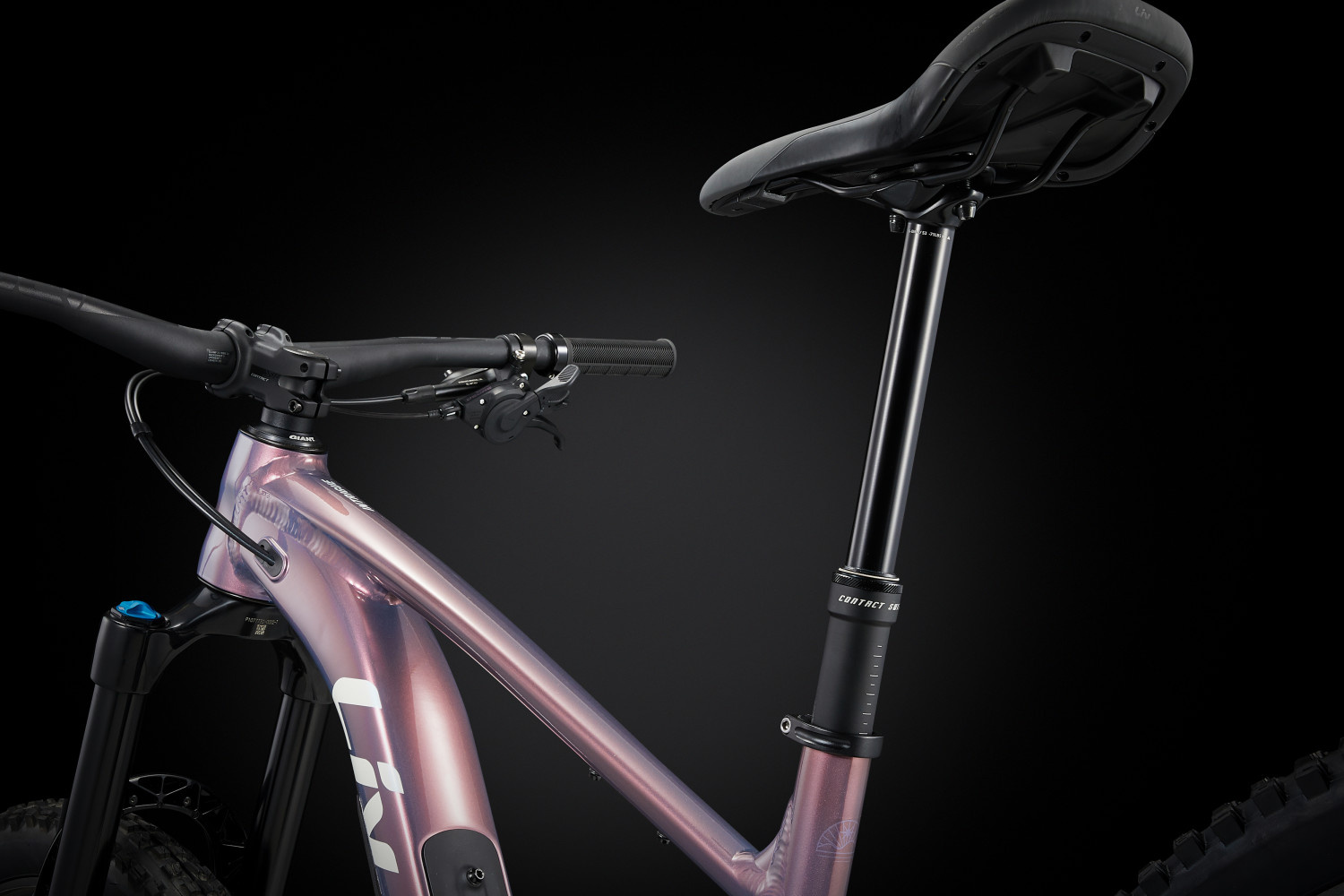

Giant Contact Switch AT, adjustable dropper, remote
Saddle:
Liv Sylvia
Pedals:
N/A

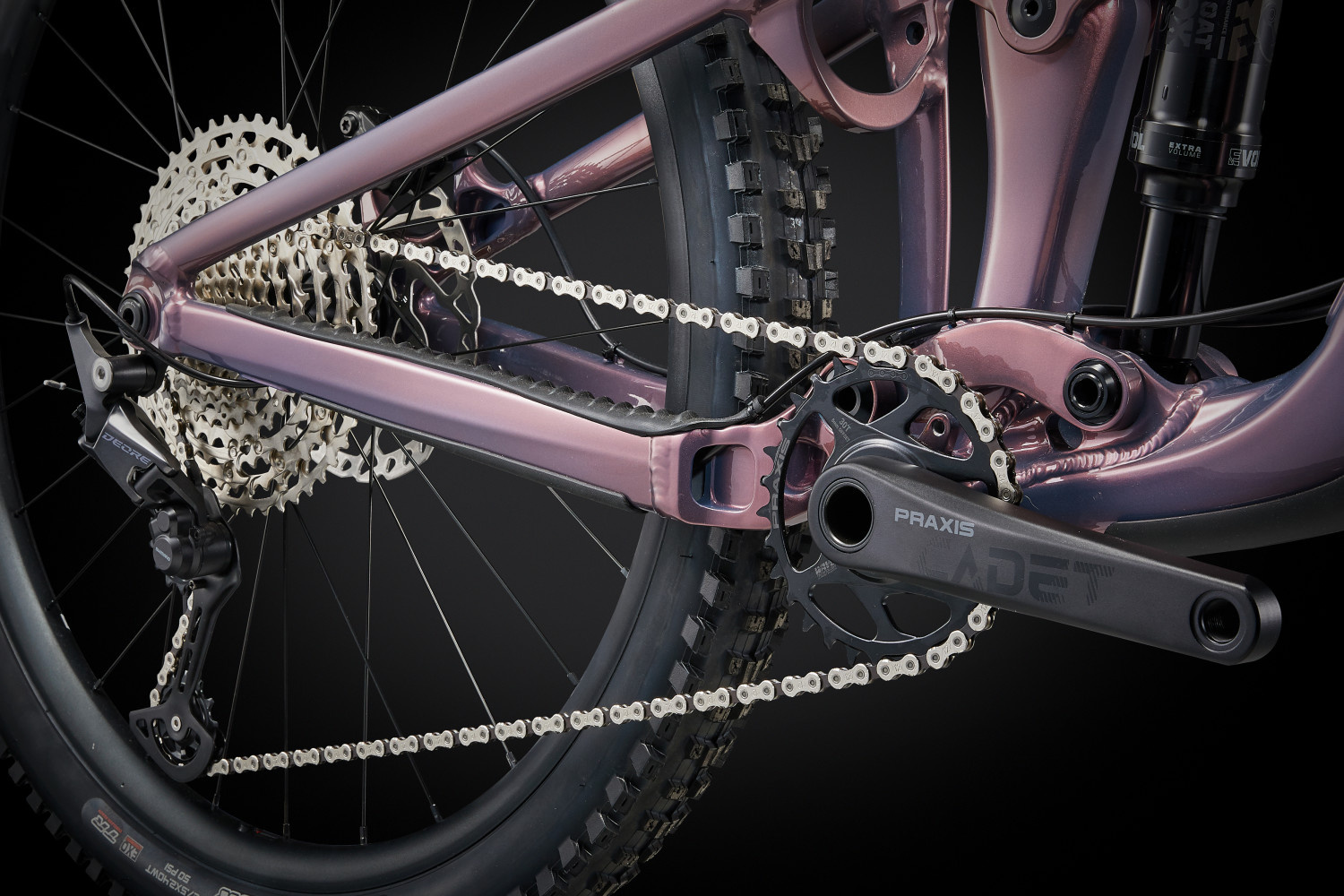

Shifters:
Shimano Deore, 1x12
Front Derailleur:
N/A
Rear Derailleur:
Shimano Deore, Shadow+
Brakes:
Shimano BR-MT420, hydraulic disc
Brake Levers:
Shimano BL-MT401
Cassette:
Shimano Deore M6100, 10–51t
Chain:
KMC X12
Crankset:
Praxis Cadet M24 Boost, 30T, 55mm chainline
Bottom Bracket:
Praxis, press-fit
Rims:
Giant TRA 2, 6061 alloy, sleeve-joint, 30mm internal width, 40mm outer width, 21mm height, Wide Guard technology
-
XS/S: Front - 29", Rear - 27.5"
-
M/L: Front - 29", Rear - 29"
Hubs:
-
Front: Giant MTB alloy, 6-bolt, sealed
-
Rear: Giant MTB alloy, 6-bolt, 72T POE, 6-pawl, sealed
Spokes:
Sapim Race J-bend
Tires:
-
Front: Maxxis Minion DHF, 29x2.5" WT, 3C Max Terra, EXO, TR, tubeless
-
Rear:
-
XS/S: Maxxis Dissector, 27.5x2.4" WT, 3C Max Terra, EXO, TR, tubeless
-
M/L: Maxxis Dissector, 29x2.4" WT, 3C Max Terra, EXO, TR, tubeless
Extras:
Tubeless prepared, 2.5" max tire size, 34T max chainring size, integrated downtube storage bag
Weight:
Weight may vary based on size, finish, and components. For accuracy, check with your local dealer. All Liv bikes are designed for best-in-class weight and ride quality.
